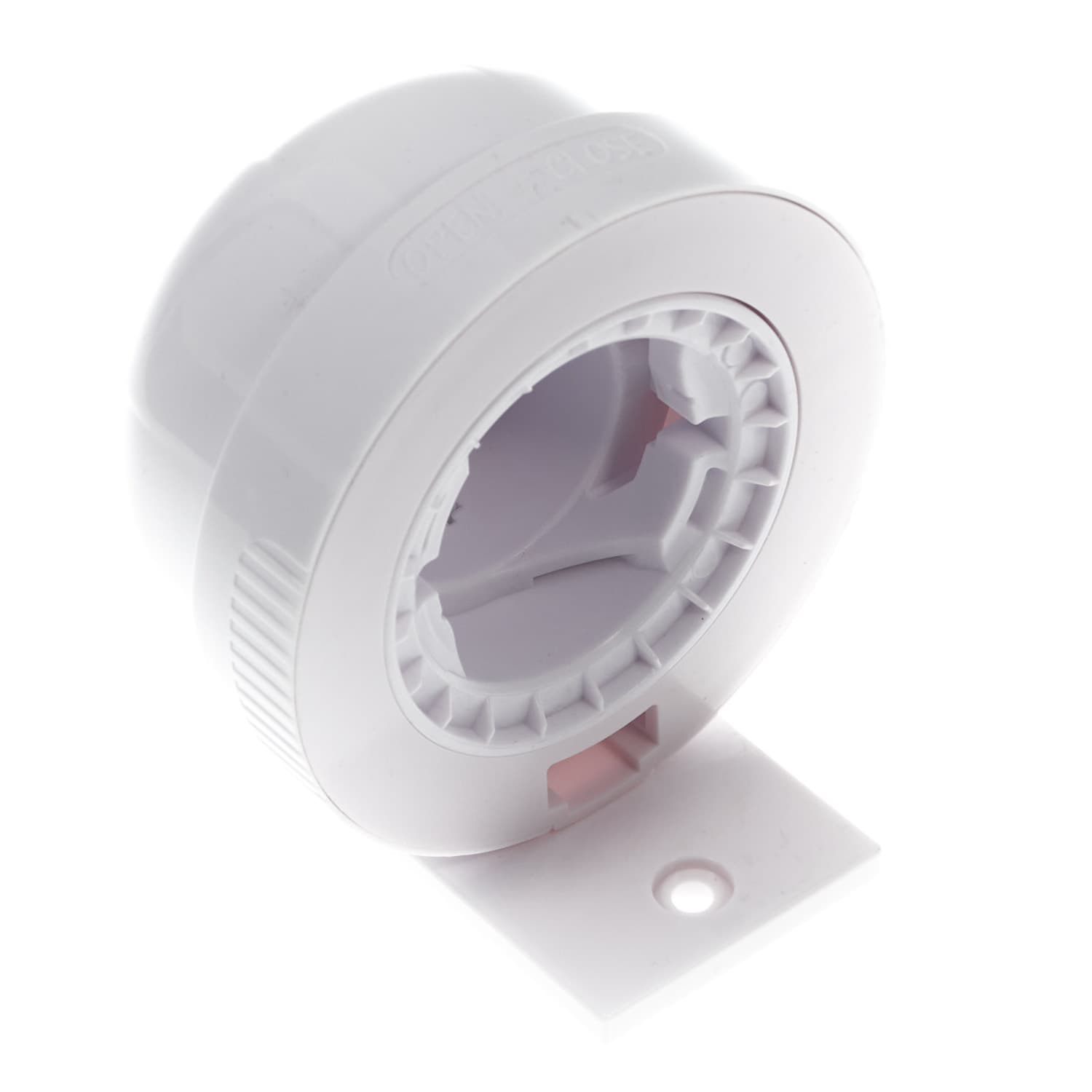

VA-Standard - Membrane head for 500 GPD membrane

VA_-Standard Membrankopf für 500 GPD Membran

€69.00*

Content: 1 Stück

Prices incl. VAT plus shipping costs

No longer available

Product number: 1000187

EAN: 4260645520684

Manufacturer no.: 1000187

Weight: 0.122 kg

Length: 99 mm

Height: 98 mm

Width: 93 mm

Product information "VA-Standard - Membrane head for 500 GPD membrane"

VA-Standard-Cartridge System
In water filtration it is very important to use a reliable and robust water filter cartridge system. Often, the pre- and post-filters are the Achilles' heel of a water treatment system, its weak point. The filter cartridges have to withstand pressure peaks of up to 50 bar that can occur in the water pipe. The cartridge must not burst or even jump out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.

The VA-Standard - cartridges are sealed using a rotary welding process, which results in maximum strength. In addition, each cartridge has its own seals, which do not have to be laboriously cleaned, checked or replaced when changing the filter. With every new and fresh cartridge you also get new seals.

The connection between the VA-Standard head and the VA-Standard cartridge is realized using a bayonet lock. If the cartridge is under pressure, the connection snaps into the bayonet lock. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical blocking of the water supply on the VA-Standard head. If the VA-Standard cartridge is removed, two mechanical valves lock the water inlet and outlet in the VA-Standard head. This technology prevents water from leaking out of the VA-Standard head in an uncontrolled manner and causes damage to the water treatment system or the environment.

The VA-Standard cartridge system is modern, robust and safe. It is also perfect as a kit to realize your own water filter variations.

Connection A:	1/4" tube OD - John Guest Speedfit
Connection B:	1/4" tube OD - John Guest Speedfit
Connection C:	1/4" tube OD - John Guest Speedfit
