3-way tap, 3rd Gen, stainless steel tap
€293.99*
Available, delivery time: 3 - 5 Werktage
3-Way Tap for VISION AQUA® Water Filters

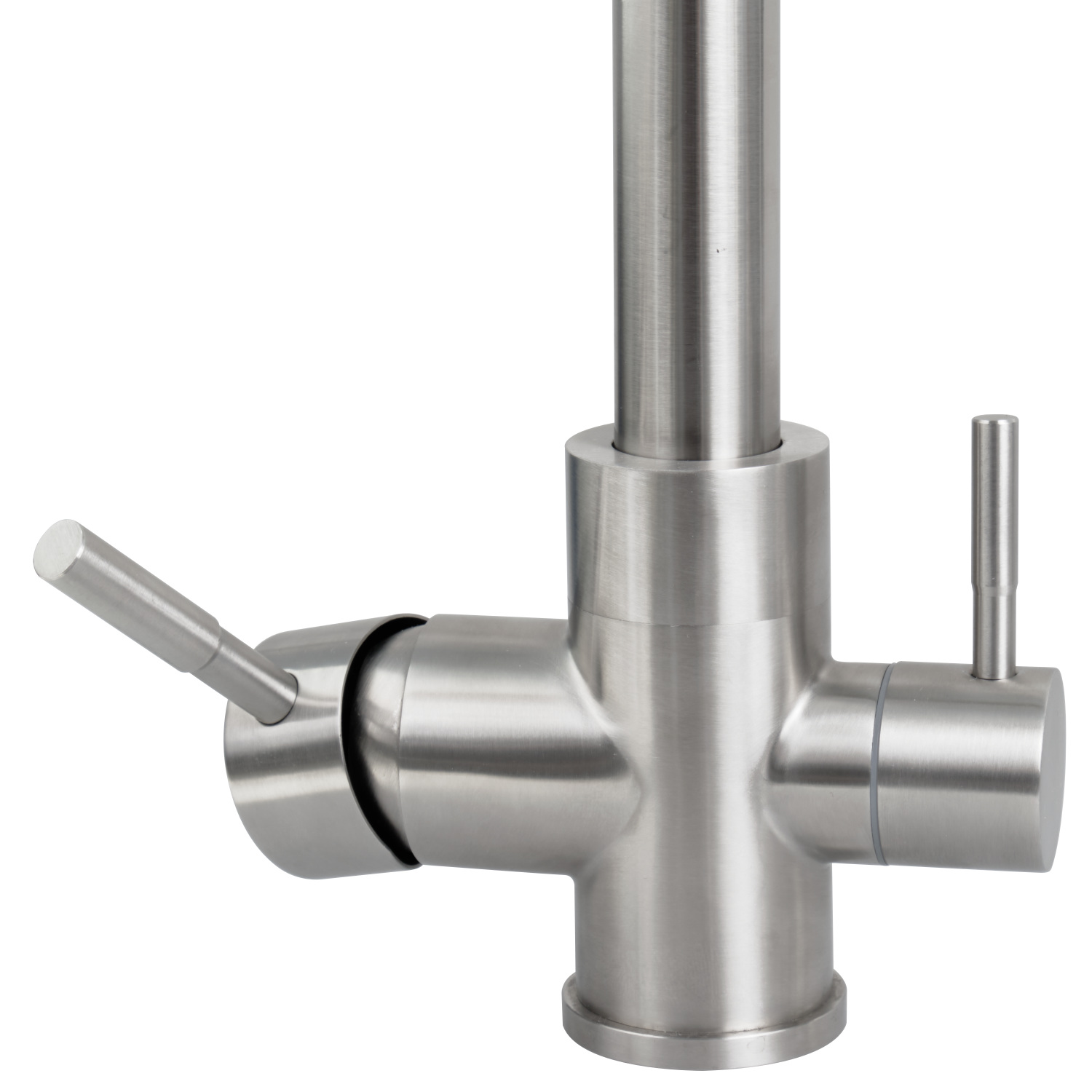

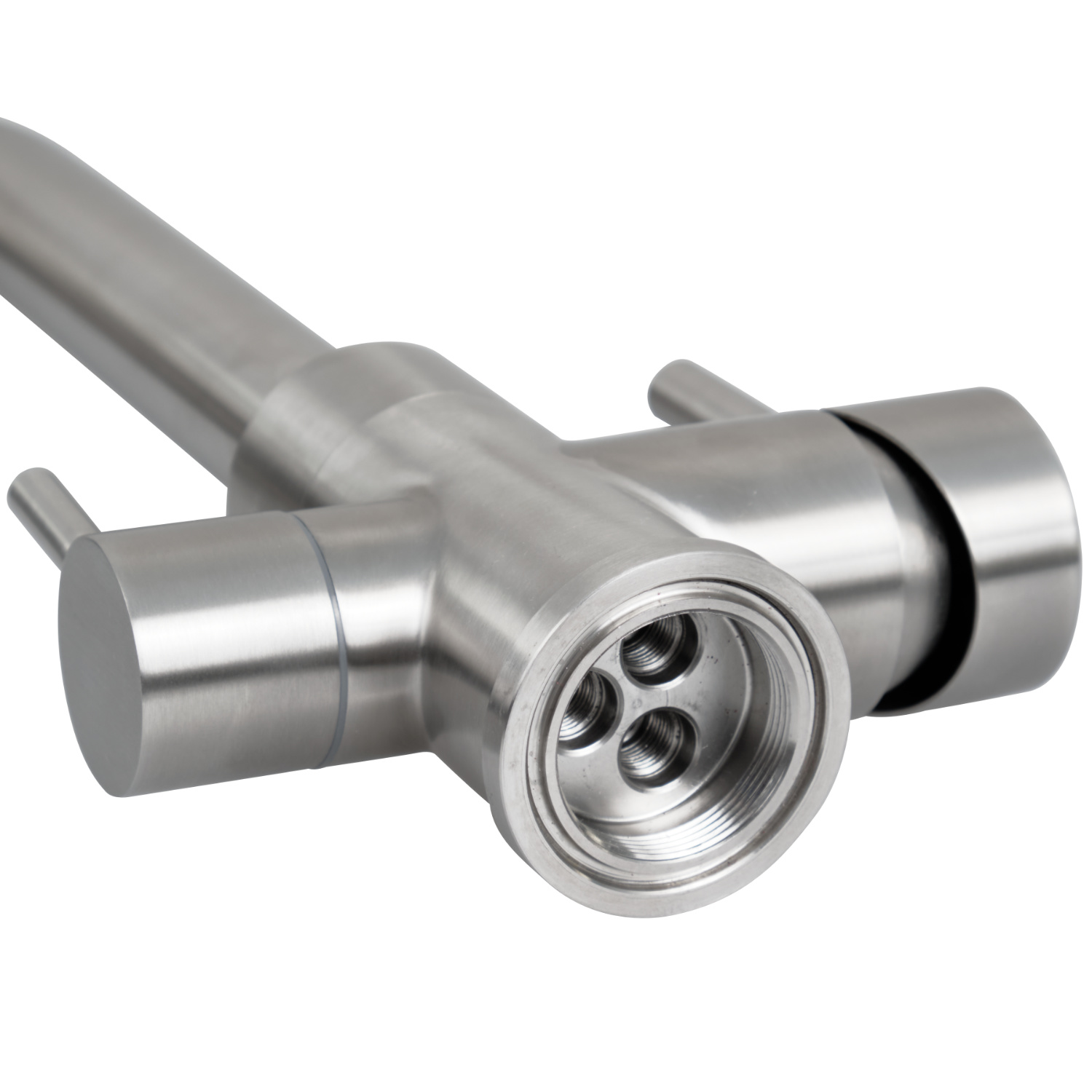

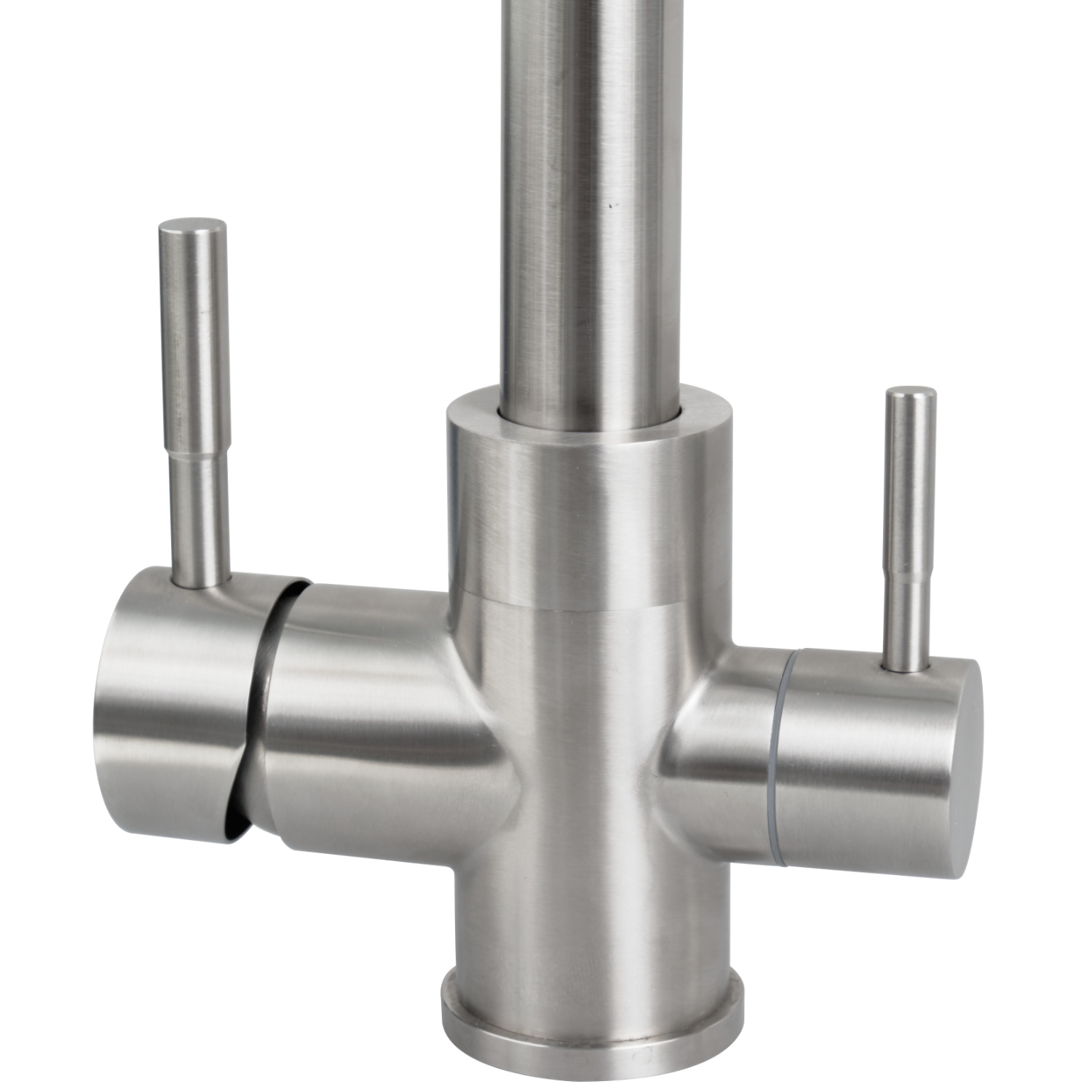

The 3-way water tap from VISION AQUA® is made entirely of stainless steel and, with its futuristic design, is a real eye-catcher in any kitchen. But it’s not just its appearance that makes it special. It stands out for its simplicity and functionality, which make it so unique. The 3-way water tap, dispensing tap of the 3rd generation, is designed for the use of hot and cold tap water, as well as for dispensing pure drinking water. Thanks to the additional outlet, you don’t need to install a separate tap on the sink for a VISION AQUA® water filter. The 3-way water tap combines two taps in one, saving you the need for drilling an additional tap hole.
Easy installation without much effort
The installation is very easy, as no additional hole needs to be drilled into the sink to extract pure water. Simply remove the existing faucet and insert the 3-way tap into the hole of the old faucet. Now it just needs to be connected to the cold and hot water supply under the sink and to the VISION AQUA® water filter. The installation is then complete and you can use the faucet to extract normal tap water and pure drinking water from VISION AQUA®.
Example installation in a practical installation video
The installation of the 3-way water tap is very easy and can be done in just a few minutes. To help you with the installation, we have created an installation video in which we explain the entire process step-by-step and provide you with useful tips and tricks.
The dimensions of the 3-way water tap in detail
The VISION AQUA® 3-way water tap has a height of approximately 335 mm and a width of approximately 280 mm. With its base diameter of approximately 50 mm, it can be easily installed on the pre-drilled hole of your old water tap. The height of the installation kit allows installation on a worktop with a maximum thickness of up to 35 mm.
The hoses for the cold and hot water connections have a length of approximately 440 mm. The permeate hose, which is connected to the purified water outlet of the water filter system, has a length of approximately 260 mm.
Downloads
Product information "3-way tap, 3rd Gen, stainless steel tap"

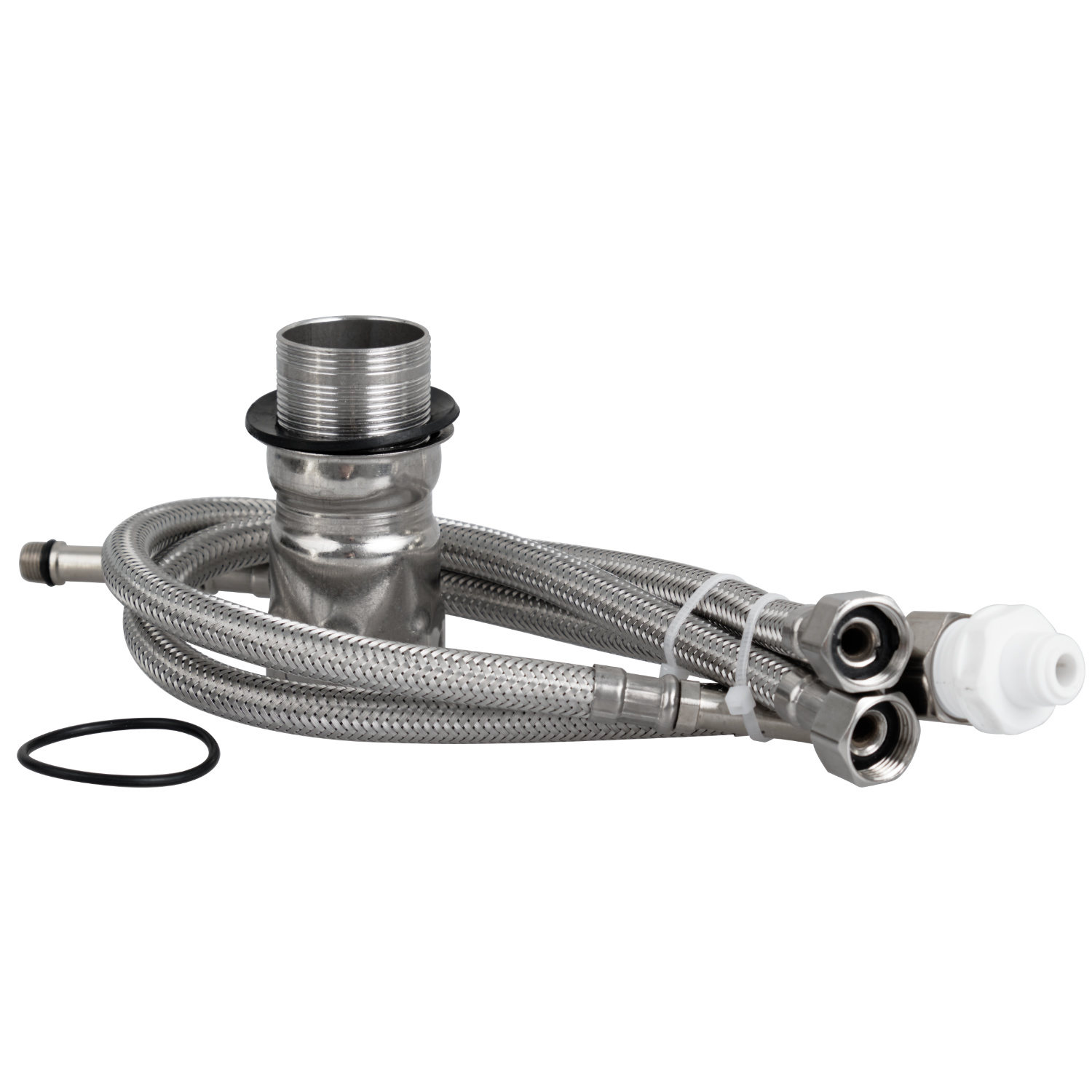

Scope of delivery:
- 1 x 3-way tap (material: 304 stainless steel, matt) incl. O-ring

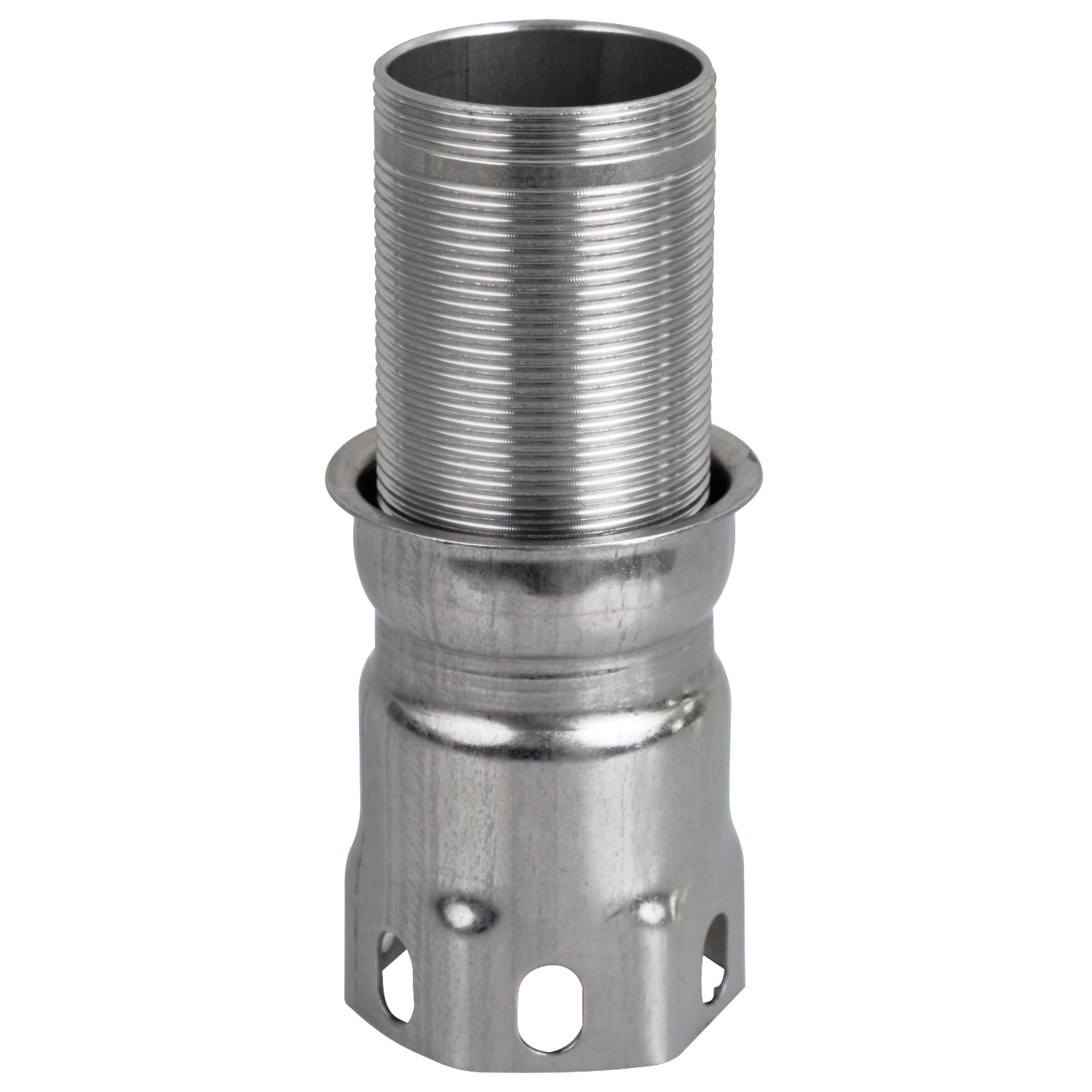

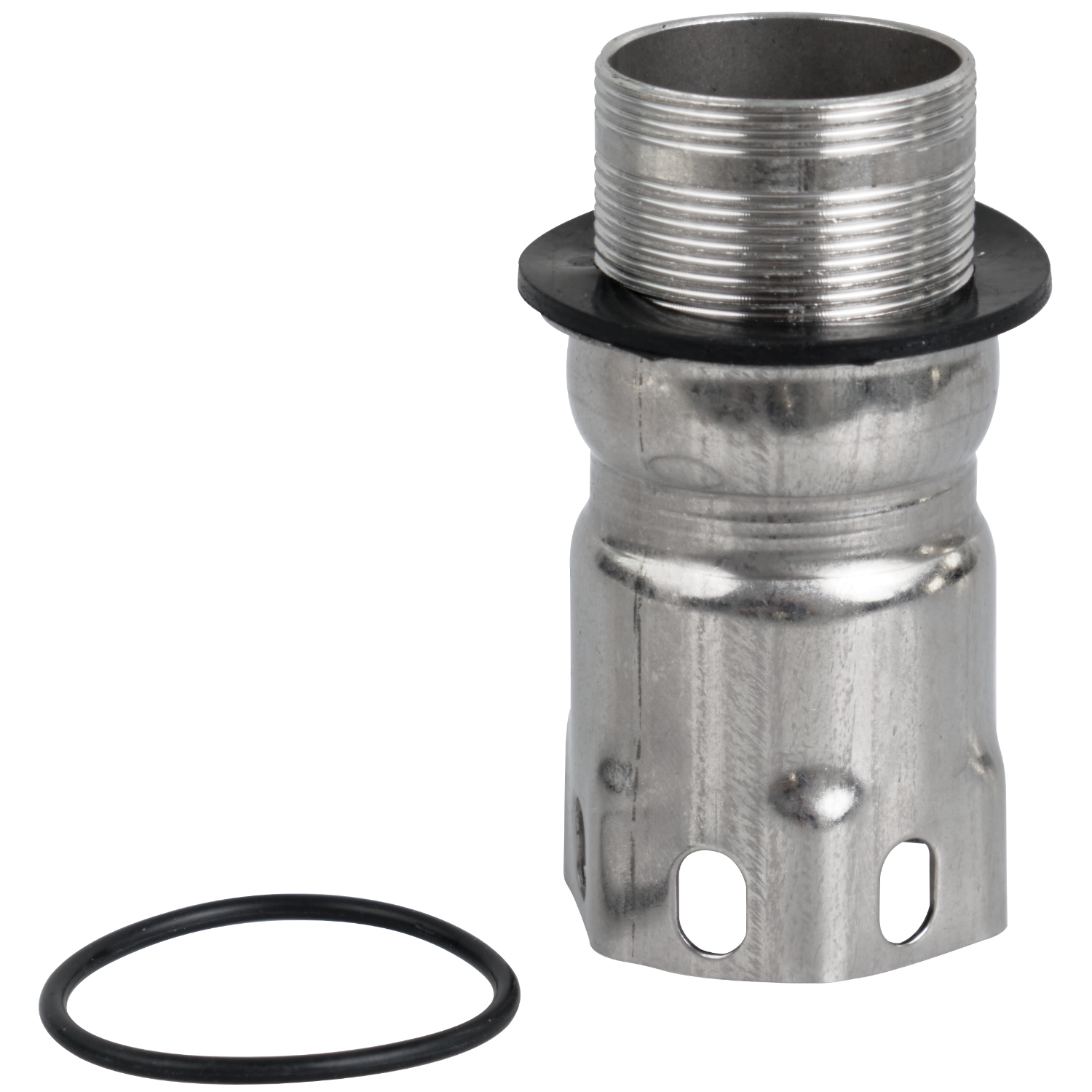

- 1 x installation kit (material: SUS201 stainless steel) including sealing ring
- 1 x hose for permeate
- 2 x hoses for cold and hot water
- 1 x PP010824W - Screw-in connector - 1/4" tube OD to 1/2" outer thread NPTF USA - John Guest
Dimensions:
- Height: approx. 335mm
- Width: approx. 280mm
- Diameter tap base: approx. 50 mm
- Worktop height: max. 35 mm
- Hose for permeate: approx. 260 mm
- Hose for cold and hot water: approx. 440 mm

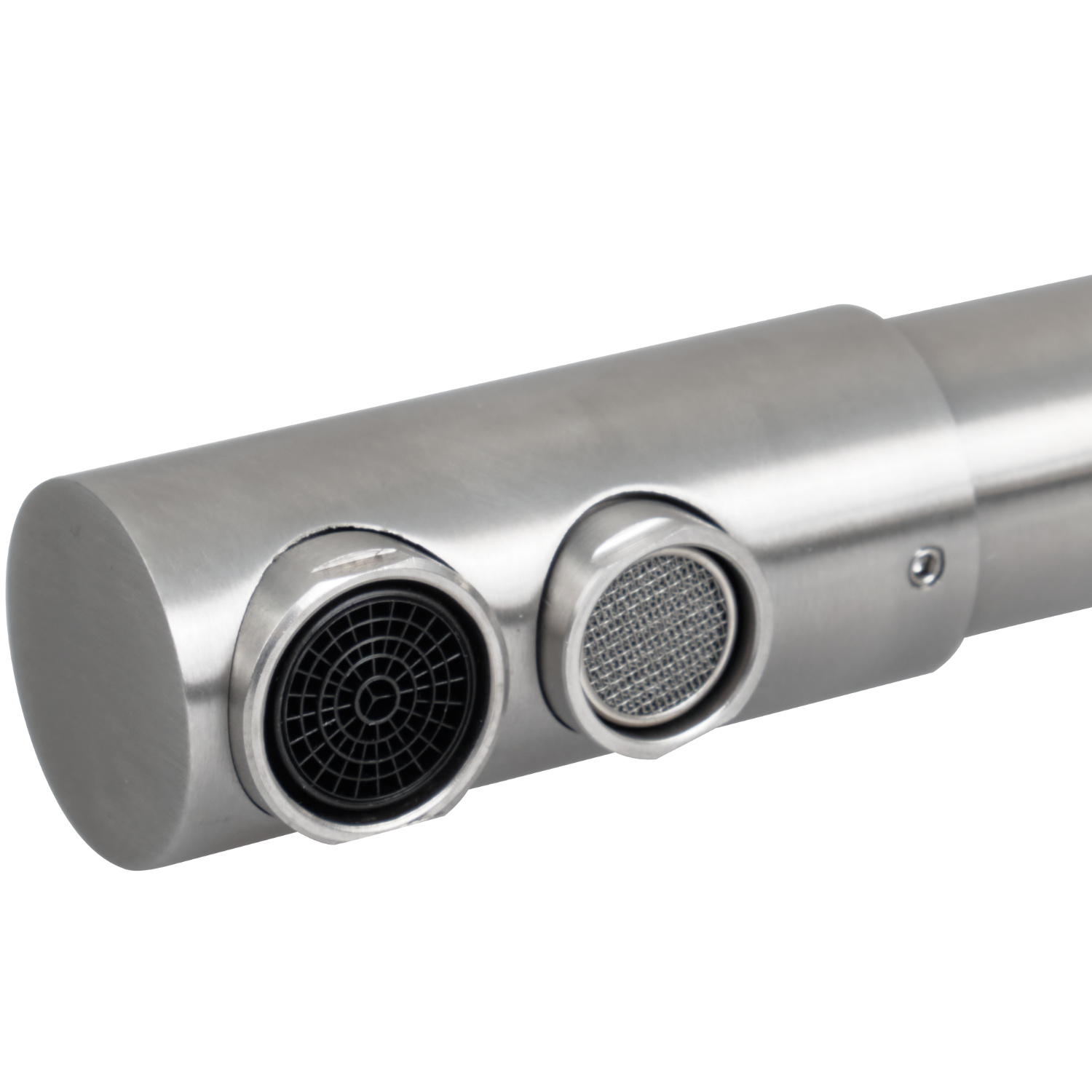

- Aerator permeate: M20
- Aerator cold and hot water: M24
| Input connection: | 1/4" tube OD - John Guest Speedfit |
|---|
