VanLife - water filter for campers and mobile homes

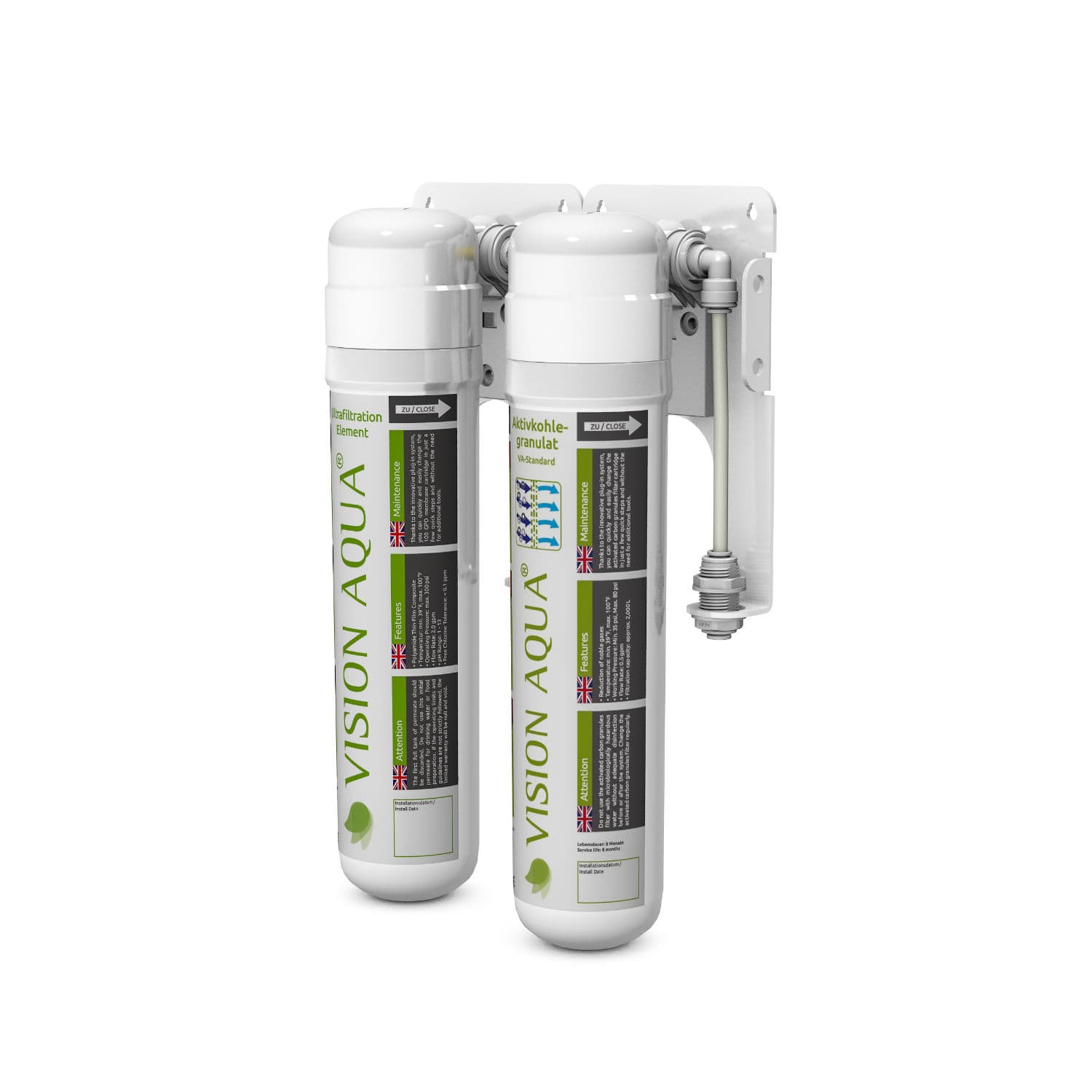

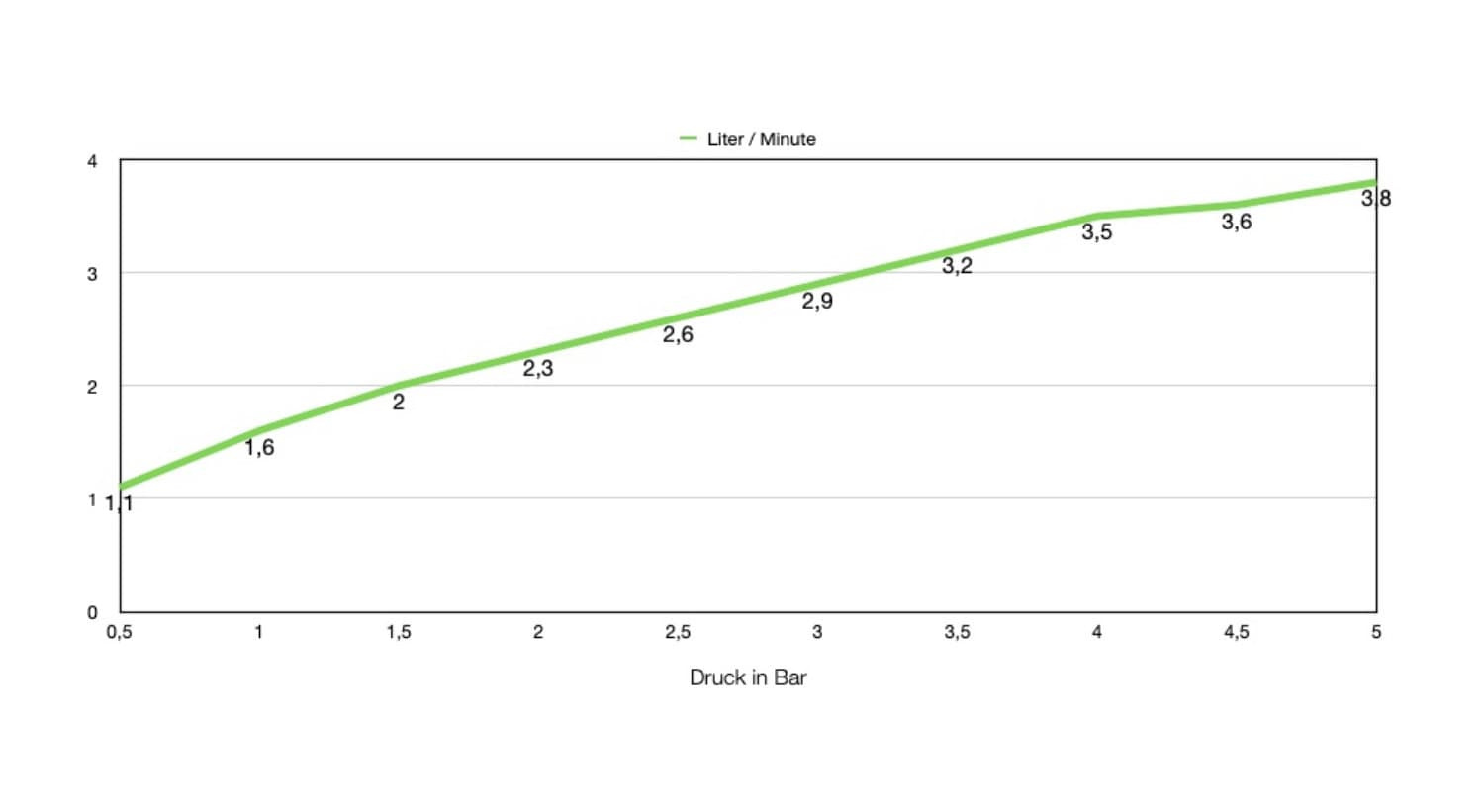

Ultrafiltration: As a unique filtration process, ultrafiltration primarily retains microbiological contamination from the water. With a pore size of less than 0.1 µm, the ultrafiltration element is mainly used in the VISION AQUA® VA-Camping water filter for outdoor applications.Filter characteristics:Inlet water temperature: max. 45 °COperating pressure: 1,5 - 4 barflow rate: 2 - 3,5 l/minService life: max. 6 months (depending on the degree of contamination and continuous water loadVA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.

Activated carbon filtration: Activated carbon filters remove pollutants such as dust, heavy metals and organic substances, odours, and tastes. During the service life of the activated carbon, the contaminants accumulate in the filter.Therefore, the replacement must take place at appropriate intervals. If no replacement takes place, the substances already absorbed may be released, which in turn causes additional water contamination. Filter properties:Activated carbon granulate made from 100% coconut shell.Filters dust, heavy metals, organic substances, odours and tastes.The activated carbon block can absorb more chlorine and other gases than activated carbon granules and is recommended when the tap water is polluted with chlorine, for example.Reduces chlorine odourTemperature: min. 4 °C, max. 38 °CWorking pressure: min. 1,38 bar, max. 5,52 barFlow rate: 1,89 lFiltration capacity: approx. 2.000 lVA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.

Activated carbon filtration: Activated carbon filters remove pollutants such as dust, heavy metals and organic substances, odours, and tastes. During the service life of the activated carbon, the contaminants accumulate in the filter.Therefore, the replacement must take place at appropriate intervals. If no replacement takes place, the substances already absorbed may be released, which in turn causes additional water contamination. Filter properties:Activated carbon block made from 100% coconut shell.Filters dust, heavy metals, organic substances, odours and tastes.The activated carbon block can absorb more chlorine and other gases than activated carbon granules and is recommended when the tap water is polluted with chlorine, for example.Reduces chlorine odourTemperature: min. 4 °C, max. 38 °CWorking pressure: min. 1,38 bar, max. 5,52 barFlow rate: 1,89 lFiltration capacity: approx. 2.000 lGranule density: 5 µm between the pressed pieces of activated carbonVA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.

Activated carbon filtration: Activated carbon filters remove pollutants such as dust, heavy metals and organic substances, as well as odours and tastes. In the course of the service life of the activated carbon, the pollutants accumulate in the filter.Therefore, replacement must take place at appropriate intervals. If no replacement takes place, the substances already absorbed may be released, which in turn causes additional contamination of water. Filter properties:Activated carbon granules made from 100% coconut shell.Filters dust, heavy metals, organic substances, odours and tastesEnriches water with vital minerals such as calcium and magnesiumReduction of inert gasesTemperature: min. 4 °C, max. 38 °COperating pressure: min. 1,38 bar, max. 5,52 barFlow rate: 1,89 lFiltration capacity: approx. 2.000 lVA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.
