Reverse Osmosis: Spare Parts and Components for Your System

This booster pump is a direct flow pump and is mainly used in a variety of reverse osmosis systems. Direct flow pumps have good and stable performance in high flow RO systems. The direct flow pump can be used in commercial, agricultural or industrial applications where high flow rates are required.Features:Performance: max. 8.0 L/min, up to 10 bar (150 psi)Water connection: 4 x 3/8" inner threadPower connection: 48 V DC

Features:Capacity: 4.2 L/min, at 8 bar (150 PSI) Water connection: 3/8" tube external diameter, quick coupling Power connection: 24 V DC

Falls Sie auf der Suche nach einer leistungsstarken und zuverlässigen Membranpumpe für Ihre Osmoseanlage oder Ihr Wohnmobil sind, wird Sie die Stream-Power-Serie zweifellos überzeugen. Das innovative Dual-Head-System ermöglicht eine Vielzahl von Einsatzmöglichkeiten. Diese Konstruktion erlaubt es der Pumpe, zwei Umkehrosmosemembranen gleichzeitig zu betreiben oder Wasser aufzusaugen und es mit dem anderen Kopf zur Anwendung weiterzuleiten. Die Einsatzvielfalt dieser Pumpe kennt keine Grenzen. Dank der physikalischen Trennung können die Pumpköpfe sogar verschiedene Wasserkreisläufe bedienen.Die Stream-Power-Serie wird grundsäzlich mit 36V Gleichstrom Betreiben was ein Spannungswandler für 12 bzw. 24 V Boardnetze bei Wohnmobilen vorraussetzt.

Features:Patented stainless steel water connectionHigh-quality butyl membrane (hat membrane)Proven single membrane constructionLining made of untreated polypropylene, approved for drinking water2-component polyurethane coating on epoxy primerScrew cap with O-ring for additional sealing of the air valveAll necessary approvals for drinking water NSF, ACS, WRAS, CEThoroughly tested and maintenance free

Filmtec reverse osmosis membranesFILMTEC ™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industry, municipalities, commercial and consumer water applications. These reverse osmosis membranes offer high retention of dissolved solids and organic substances and work very efficiently at lower pressures.FILMTEC reverse osmosis membranes are also characterized by excellent structural stability and are more efficient than other reverse osmosis membranes. These membranes are used to demineralize brackish water or seawater desalination for a variety of industries and applications including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at home for drinking water devices.Advantages and functions    Reduction of salinity • Removal of chemical contaminants    Recovery of ultrapure water    Pre-concentration of flows before an evaporator    Reduction in the amount of wastewater by increasing water reuse    Tap water, brackish water    2.5 ", 4", 8 " membranes    Utmost retention    Low energy consumption    Resistant to contaminationTypical applications    Reverse osmosis    Drinking water    Ultrapure water    Process water    Food and beverage industry    Chemical industry    Metal surface treatment    Electronics    Nanofiltration    Ultrafiltration    All rights reserved ® Filmtec

Falls Sie auf der Suche nach einer leistungsstarken und zuverlässigen Membranpumpe für Ihre Osmoseanlage oder Ihr Wohnmobil sind, wird Sie die Stream-Power-Serie zweifellos überzeugen. Das innovative Dual-Head-System ermöglicht eine Vielzahl von Einsatzmöglichkeiten. Diese Konstruktion erlaubt es der Pumpe, zwei Umkehrosmosemembranen gleichzeitig zu betreiben oder Wasser aufzusaugen und es mit dem anderen Kopf zur Anwendung weiterzuleiten. Die Einsatzvielfalt dieser Pumpe kennt keine Grenzen. Dank der physikalischen Trennung können die Pumpköpfe sogar verschiedene Wasserkreisläufe bedienen.Die Stream-Power-Serie wird grundsäzlich mit 36V Gleichstrom Betreiben was ein Spannungswandler für 12 bzw. 24 V Boardnetze bei Wohnmobilen vorraussetzt.

500 GPD FILMTEC™ Reverse osmosis-Membranes FILMTEC™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industrial, municipal, commercial and consumer water applications. These reverse osmosis membranes provide high retention of dissolved solids and organics and operate very efficiently at lower pressures.The 500 GPD FILMTEC™ reverse osmosis membranes also feature excellent structural strength and are more productive than other reverse osmosis membranes. These membranes are applied to demineralise brackish water or seawater desalination for various industries and applications, including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at-home drinking water devices.Features and functions:Material: TFC (DOW™ FILMTEC™)Input water temperature: max. 45 °COperating pressure: 5 - 6 barPermeate production: max. 78 l/hpH-range: 2 - 11Chlorine tolerance: < 0,1 ppmSeparation rate: 98%Filters up to approx. 1900 liters per day (500 gallons per day) Reduction of salinityRemoval of chemical impuritiesRecovery of ultra-pure waterPre-concentration of water streams upstream of evaporatorsReduction of wastewater volume by increasing water reuseTap water, brackish water2,5", 4", 8" membranesHighest retentionLow energy consumptionResistant to impuritiesTypical applications:Reverse osmosisDrinking waterUltra-pure waterProcess waterFood and beverage industryChemical processingMetal surface treatmentElectronicsNanofiltrationUltrafiltrationAll rights reserved by FILMTEC™VA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.

Falls Sie auf der Suche nach einer leistungsstarken und zuverlässigen Membranpumpe für Ihre Osmoseanlage oder Ihr Wohnmobil sind, wird Sie die Stream-Power-Serie zweifellos überzeugen. Das innovative Dual-Head-System ermöglicht eine Vielzahl von Einsatzmöglichkeiten. Diese Konstruktion erlaubt es der Pumpe, zwei Umkehrosmosemembranen gleichzeitig zu betreiben oder Wasser aufzusaugen und es mit dem anderen Kopf zur Anwendung weiterzuleiten. Die Einsatzvielfalt dieser Pumpe kennt keine Grenzen. Dank der physikalischen Trennung können die Pumpköpfe sogar verschiedene Wasserkreisläufe bedienen.Die Stream-Power-Serie wird grundsäzlich mit 36V Gleichstrom Betreiben was ein Spannungswandler für 12 bzw. 24 V Boardnetze bei Wohnmobilen vorraussetzt.

FILMTEC™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industrial, municipal, commercial and consumer water applications. These reverse osmosis membranes provide high retention of dissolved solids and organics and operate very efficiently at lower pressures.The 100 GPD FILMTEC™ reverse osmosis membranes also feature excellent structural strength and are more productive than other reverse osmosis membranes. These membranes are applied to demineralise brackish water or seawater desalination for various industries and applications, including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at-home drinking water devices.Features:Material: TFC (DOW™ FILMTEC™)Input water temperature: max. 45 °COperating pressure: 5 - 6 barPermeate production: max. 15 l/hpH-range: 2 - 11Chlorine tolerance: < 0,1 ppmSeparation rate: 98%Filters up to approx. 380 liters per day (100 gallons per day) Reduction of salinityRemoval of chemical impuritiesRecovery of ultra-pure waterPre-concentration of water streams upstream of evaporatorsReduction of wastewater volume by increasing water reuseTap water, brackish water2,5", 4", 8" membranesHighest retentionLow energy consumptionResistant to impuritiesTypical applications:Reverse osmosisDrinking waterUltra-pure waterProcess waterFood and beverage industryChemical processingMetal surface treatmentElectronicsNanofiltrationUltrafiltrationAll rights reserved by FILMTEC™VA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.

Properties: Pressure storage tank with membrane technology Dimensions: 37cm high (without shut-off valve) / 28,5cm in diameter Capacity: approx. 12 litres Outer material: metal, painted whiteInner material: food-grade coating/rubber membraneThe shut-off valve must be purchased separately!

Properties: Pressure storage tank with membrane technology Dimensions: 20,5 cm high (without shut-off valve) / 15 cm in diameter Capacity: approx. 3 litres Outer material: metal, painted whiteInner material: food-grade coating/rubber membraneThe shut-off valve must be purchased separately!

200 GPD FILMTEC™ Reverse Osmosis-Membranes FILMTEC™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industrial, municipal, commercial and consumer water applications. These reverse osmosis membranes provide high retention of dissolved solids and organics and operate very efficiently at lower pressures.The 200 GPD FILMTEC™ reverse osmosis membranes also feature excellent structural strength and are more productive than other reverse osmosis membranes. These membranes are applied to demineralise brackish water or seawater desalination for various industries and applications, including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at-home drinking water devices.Features and functionsReduction of salinityRemoval of chemical impuritiesRecovery of ultra-pure waterPre-concentration of water streams upstream of evaporatorsReduction of wastewater volume by increasing water reuseTap water, brackish water2,5", 4", 8" membranesHighest retentionLow energy consumptionResistant to impuritiesTypical applicationsReverse osmosisDrinking waterUltra-pure waterProcess waterFood and beverage industryChemical processingMetal surface treatmentElectronicsNanofiltrationUltrafiltrationAll rights reserved by FILMTEC™

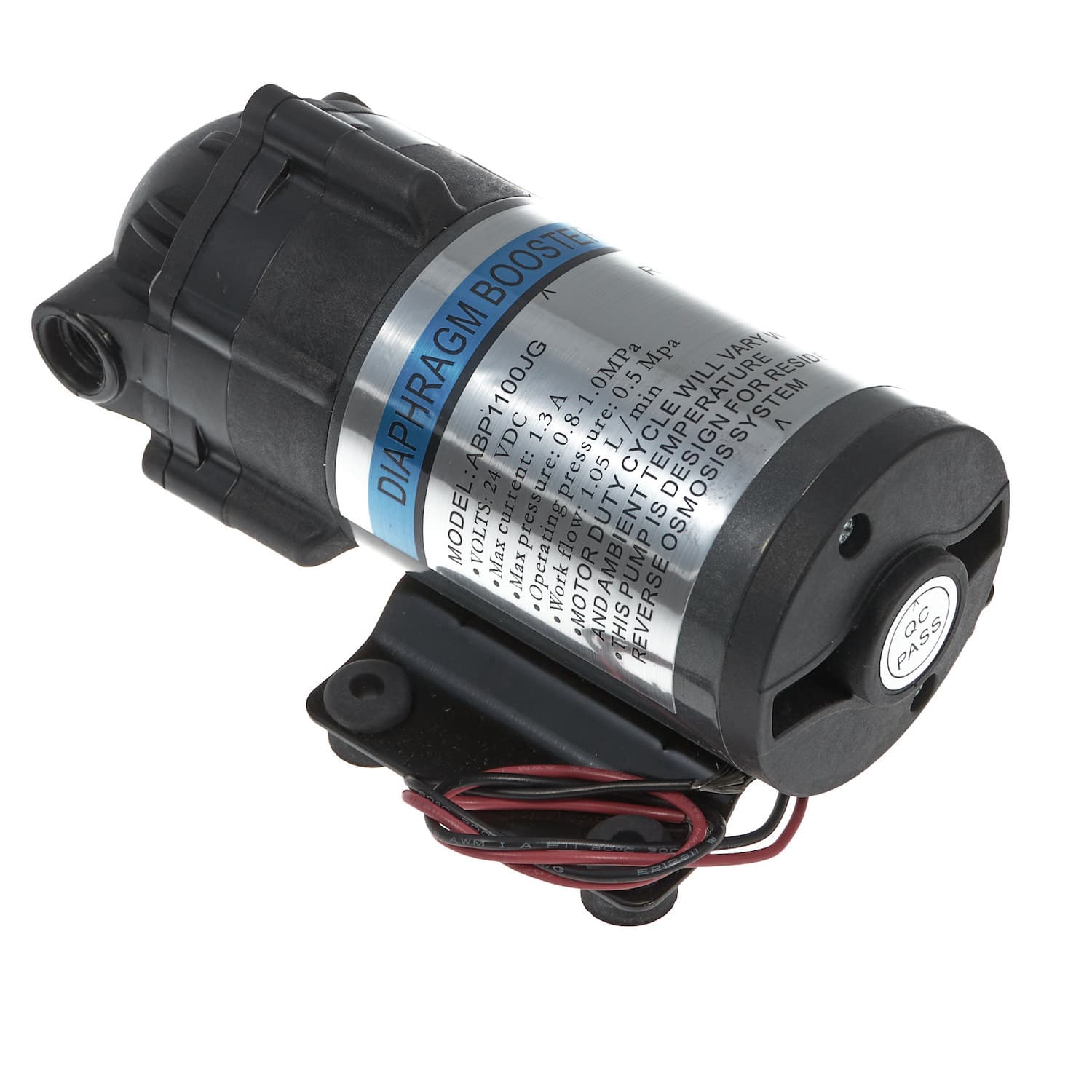

The booster pump is suitable for reverse osmosis systems and water filters. The pump is used in 50 to 200 GPD membranes for reverse osmosis systems.Features:Power supply: 24V DCWorking pressure: 5 bar Maximum pressure: 8 - 10 bar Flow rate: 1,05 l/minNot suitable for continuous operation

The flow limiter is an indispensable component in every reverse osmosis water filter. Only through the flow limiter, the process of reverse osmosis takes place in a membrane. The flow limiter, also known as a fixed pressure regulator, ensures that a certain amount of wastewater (retentate) can flow out of the reverse osmosis membrane within a certain time. Only then can the osmotic pressure build-up. For example, the inscription FLOW 700 means that at approx. 6 - 8 bar operating pressure of the reverse osmosis membrane (osmotic pressure, internal pressure), the flow limiter lets through a water quantity of approx. 700 millilitres per minute relatively constantly (depending on the back pressure).In addition, selecting the appropriate flow restrictor also determines the ultrapure water (permeate) to wastewater ratio. Since the VISION AQUA water filters are additionally equipped with the GREENOSMO® TECHNOLOGY, flow limiters can also be used, which do not comply with the usual specifications for ultra-pure water to wastewater ratio.Thus, the VISION AQUA water filters with reverse osmosis achieve a ratio of 1:0.8, which in plain language means that for 1 litre of ultra-pure water, the VISION AQUA water filter with reverse osmosis requires approx. 1.8 litres of raw water.

The flow limiter is an indispensable component in every reverse osmosis water filter. Only through the flow limiter, the process of reverse osmosis takes place in a membrane. The flow limiter, also known as a fixed pressure regulator, ensures that a certain amount of wastewater (retentate) can flow out of the reverse osmosis membrane within a certain time. Only then can the osmotic pressure build-up. For example, the inscription FLOW 400 means that at approx. 6 - 8 bar operating pressure of the reverse osmosis membrane (osmotic pressure, internal pressure), the flow limiter lets through a water quantity of approx. 400 millilitres per minute relatively constantly (depending on the back pressure).In addition, selecting the appropriate flow restrictor also determines the ultrapure water (permeate) to wastewater ratio. Since the VISION AQUA water filters are additionally equipped with the GREENOSMO® TECHNOLOGY, flow limiters can also be used, which do not comply with the usual specifications for ultra-pure water to wastewater ratio.Thus, the VISION AQUA water filters with reverse osmosis achieve a ratio of 1:0.8, which in plain language means that for 1 litre of ultra-pure water, the VISION AQUA water filter with reverse osmosis requires approx. 1.8 litres of raw water.

Der Durchflussbegrenzer 250 ccm ist ein wichtiges Bauteil in Umkehrosmoseanlagen. Er wird in der Retentat- bzw. Abwasserleitung eingesetzt und begrenzt den Durchfluss, damit sich an der Umkehrosmose-Membran der notwendige Betriebsdruck aufbauen kann.Was bedeutet FLOW 250?Die Kennzeichnung FLOW 250 steht für einen Richtwert von ca. 250 ml/min (abhängig von Betriebsdruck, Gegendruck und Anlagenaufbau).Typischer Einsatzbereich (Orientierung)Diese Größe wird häufig im Bereich kleinerer Umkehrosmose-Membranen eingesetzt (z. B. im Umfeld von ca. 20–30 GPD). Bitte immer die Herstellerangaben der verbauten Membran prüfen.Vor dem Kauf kurz prüfenLeistung der verbauten Umkehrosmose-Membran (GPD-Angabe auf Membran oder Datenblatt)bisher eingesetzte FLOW-Kennung (z. B. FLOW 250), falls am Altteil ablesbarAnschluss in der Abwasserleitung: 1/4" Rohr ADob gezielt ein niedrigerer Retentatfluss für die vorhandene Auslegung vorgesehen istHinweise auf eine unpassende Größedie Anlage liefert ein ungewöhnliches Reinstwasser-/Abwasserverhältnisder Abwasserstrom wirkt im Vergleich zur bisherigen Konfiguration zu hoch oder zu niedrignach dem Tausch verändert sich das Anlagenverhalten deutlich, obwohl an der Membran nichts geändert wurdeHäufige Fragen zum DurchflussbegrenzerPasst dieser Durchflussbegrenzer zu meiner Umkehrosmoseanlage?Passend ist der Durchflussbegrenzer dann, wenn FLOW-Wert, Membranleistung (GPD), Anschlussgröße (1/4" Rohr AD) und die gewünschte Anlagenauslegung zusammenpassen. Im Zweifel den alten FLOW-Wert ablesen oder das Datenblatt der Umkehrosmose-Membran prüfen.Kann ich einen anderen ccm-Wert verwenden?Ein anderer FLOW-Wert verändert das Reinstwasser-/Abwasserverhältnis und die Betriebsbedingungen der Umkehrosmose-Membran. Deshalb sollte die Auswahl nicht „nach Gefühl“, sondern passend zur Membran erfolgen.Wann sollte ein Durchflussbegrenzer mitgewechselt werden?Wenn die Membranleistung geändert wird (anderer GPD-Wert) oder der vorhandene Durchflussbegrenzer verschlissen bzw. verstopft ist.

The flow limiter is an indispensable component in every reverse osmosis water filter. Only through the flow limiter, the process of reverse osmosis takes place in a membrane. The flow limiter, also known as a fixed pressure regulator, ensures that a certain amount of wastewater (retentate) can flow out of the reverse osmosis membrane within a certain time. Only then can the osmotic pressure build-up. For example, the inscription FLOW 300 means that at approx. 6 - 8 bar operating pressure of the reverse osmosis membrane (osmotic pressure, internal pressure), the flow limiter lets through a water quantity of approx. 300 millilitres per minute relatively constantly (depending on the back pressure).In addition, selecting the appropriate flow restrictor also determines the ultrapure water (permeate) to wastewater ratio. Since the VISION AQUA water filters are additionally equipped with the GREENOSMO® TECHNOLOGY, flow limiters can also be used, which do not comply with the usual specifications for ultra-pure water to wastewater ratio.Thus, the VISION AQUA water filters with reverse osmosis achieve a ratio of 1:0.8, which in plain language means that for 1 litre of ultra-pure water, the VISION AQUA water filter with reverse osmosis requires approx. 1.8 litres of raw water.

The flow limiter is an indispensable component in every reverse osmosis water filter. Only through the flow limiter, the process of reverse osmosis takes place in a membrane. The flow limiter, also known as a fixed pressure regulator, ensures that a certain amount of wastewater (retentate) can flow out of the reverse osmosis membrane within a certain time. Only then can the osmotic pressure build-up. For example, the inscription FLOW 420 means that at approx. 6 - 8 bar operating pressure of the reverse osmosis membrane (osmotic pressure, internal pressure), the flow limiter lets through a water quantity of approx. 420 millilitres per minute relatively constantly (depending on the back pressure).In addition, selecting the appropriate flow restrictor also determines the ultrapure water (permeate) to wastewater ratio. Since the VISION AQUA water filters are additionally equipped with the GREENOSMO® TECHNOLOGY, flow limiters can also be used, which do not comply with the usual specifications for ultra-pure water to wastewater ratio.Thus, the VISION AQUA water filters with reverse osmosis achieve a ratio of 1:0.8, which in plain language means that for 1 litre of ultra-pure water, the VISION AQUA water filter with reverse osmosis requires approx. 1.8 litres of raw water.

The flow limiter is an indispensable component in every reverse osmosis water filter. Only through the flow limiter, the process of reverse osmosis takes place in a membrane. The flow limiter, also known as a fixed pressure regulator, ensures that a certain amount of wastewater (retentate) can flow out of the reverse osmosis membrane within a certain time. Only then can the osmotic pressure build-up. For example, the inscription FLOW 600 means that at approx. 6 - 8 bar operating pressure of the reverse osmosis membrane (osmotic pressure, internal pressure), the flow limiter lets through a water quantity of approx. 600 millilitres per minute relatively constantly (depending on the back pressure).In addition, selecting the appropriate flow restrictor also determines the ultrapure water (permeate) to wastewater ratio. Since the VISION AQUA water filters are additionally equipped with the GREENOSMO® TECHNOLOGY, flow limiters can also be used, which do not comply with the usual specifications for ultra-pure water to wastewater ratio.Thus, the VISION AQUA water filters with reverse osmosis achieve a ratio of 1:0.8, which in plain language means that for 1 litre of ultra-pure water, the VISION AQUA water filter with reverse osmosis requires approx. 1.8 litres of raw water.

The flow limiter is an indispensable component in every reverse osmosis water filter. Only through the flow limiter, the process of reverse osmosis takes place in a membrane. The flow limiter, also known as a fixed pressure regulator, ensures that a certain amount of wastewater (retentate) can flow out of the reverse osmosis membrane within a certain time. Only then can the osmotic pressure build-up. For example, the inscription FLOW 1200 means that at approx. 6 - 8 bar operating pressure of the reverse osmosis membrane (osmotic pressure, internal pressure), the flow limiter lets through a water quantity of approx. 1200 millilitres per minute relatively constantly (depending on the back pressure).In addition, selecting the appropriate flow restrictor also determines the ultrapure water (permeate) to wastewater ratio. Since the VISION AQUA water filters are additionally equipped with the GREENOSMO® TECHNOLOGY, flow limiters can also be used, which do not comply with the usual specifications for ultra-pure water to wastewater ratio.Thus, the VISION AQUA water filters with reverse osmosis achieve a ratio of 1:0.8, which in plain language means that for 1 litre of ultra-pure water, the VISION AQUA water filter with reverse osmosis requires approx. 1.8 litres of raw water.
