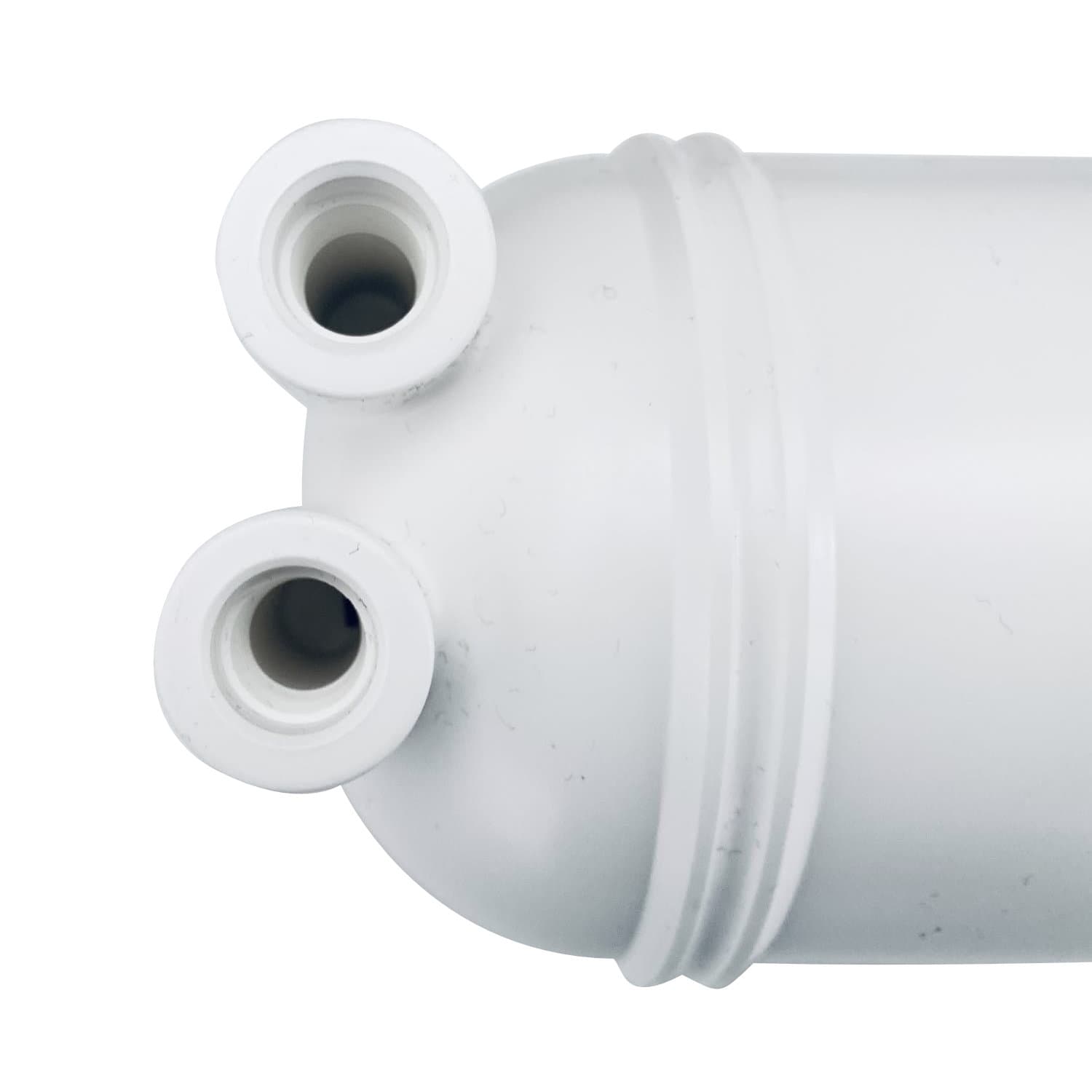

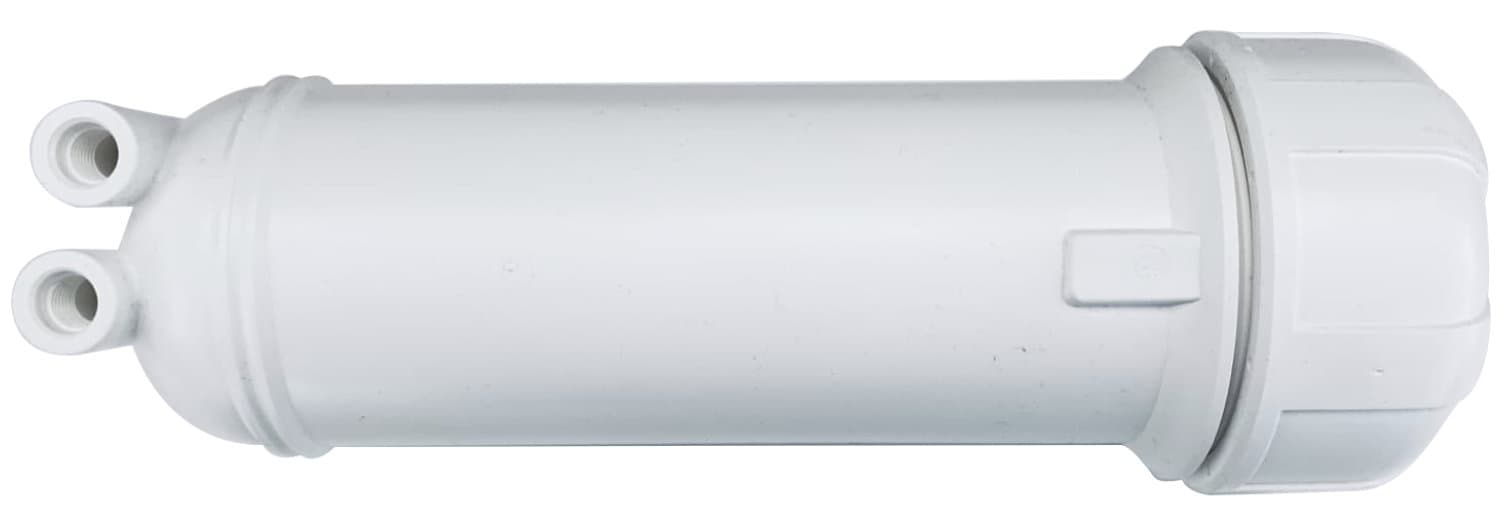

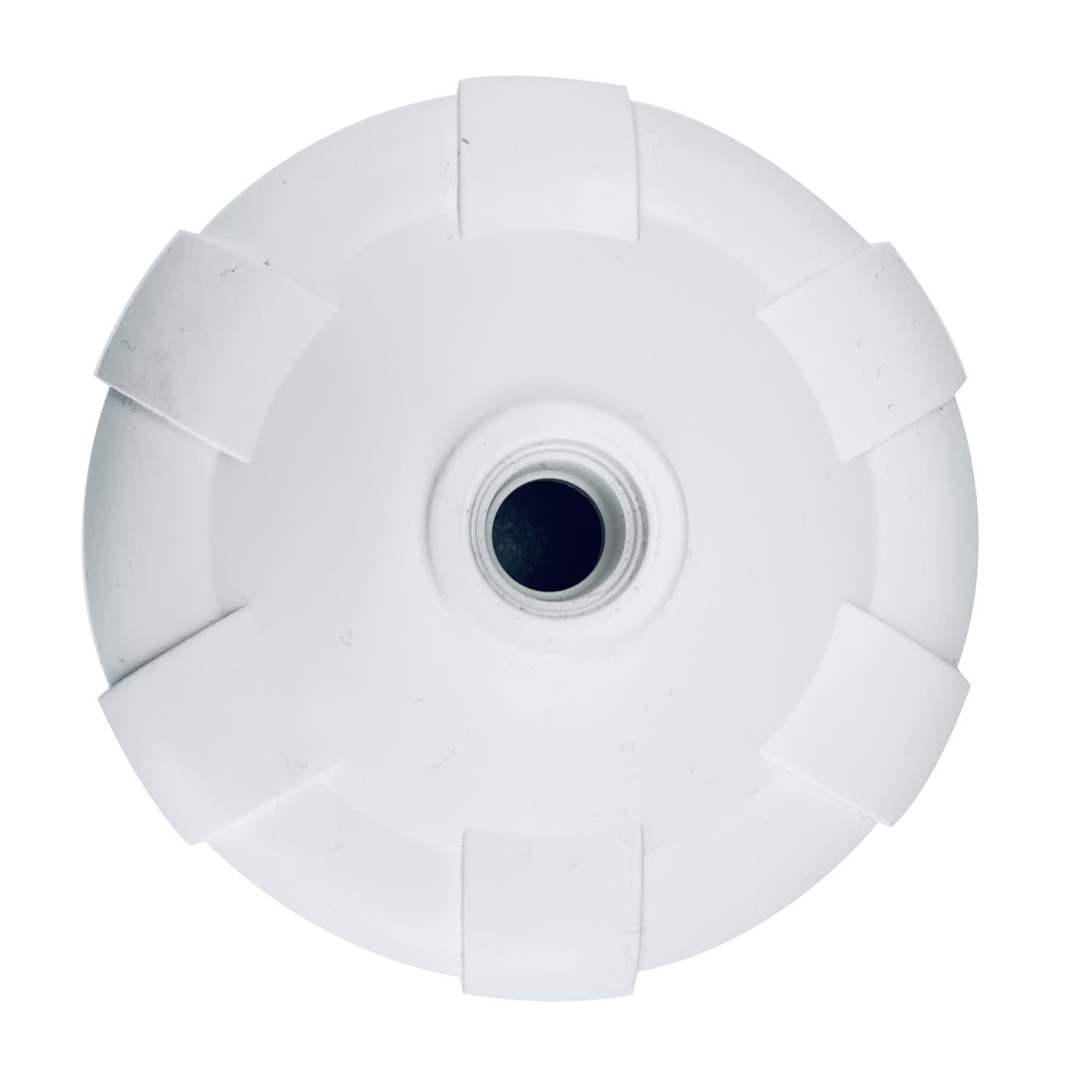

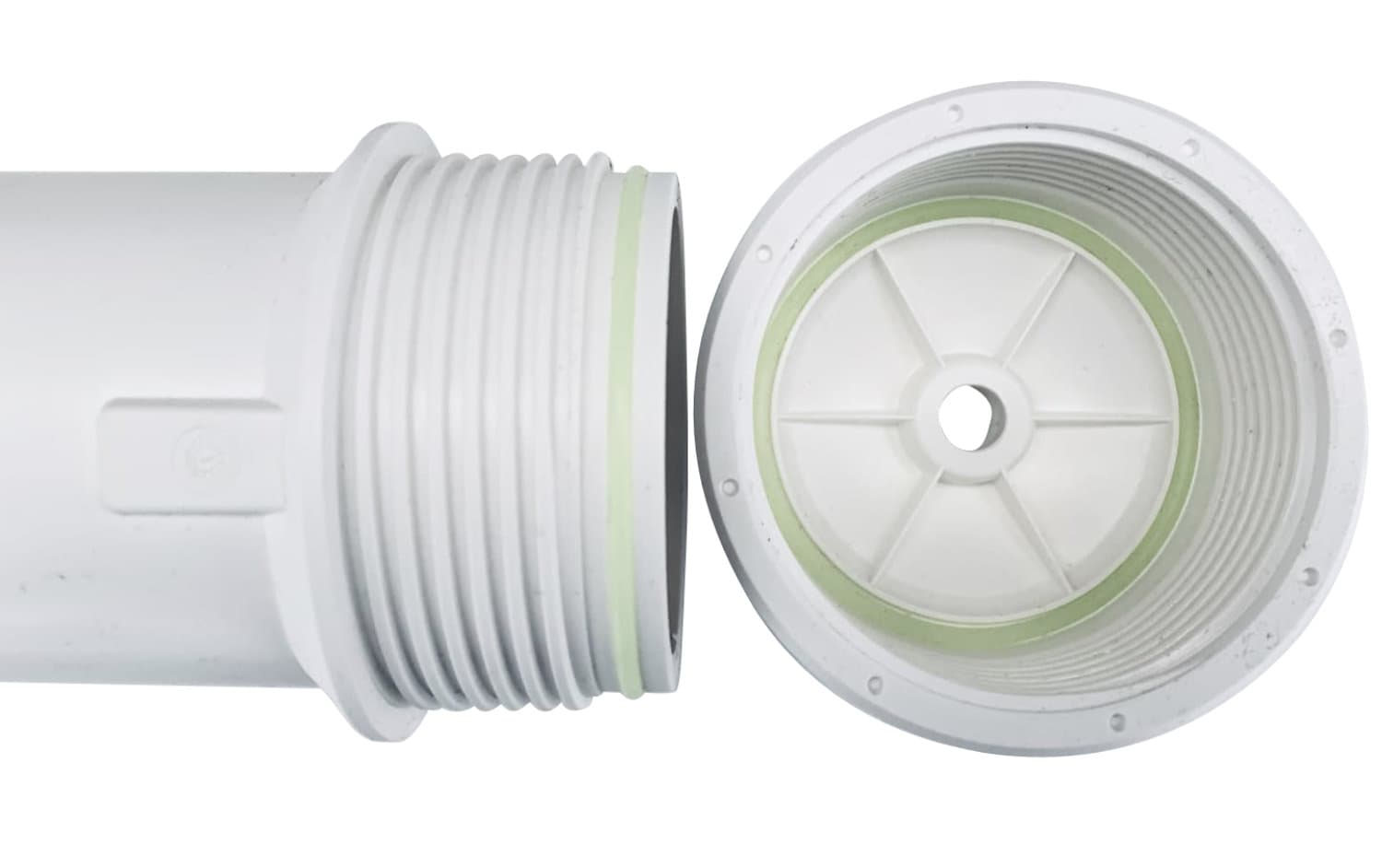

Membrane housing - 500 GPD membrane

Filmtec reverse osmosis membranesFILMTEC ™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industry, municipalities, commercial and consumer water applications. These reverse osmosis membranes offer high retention of dissolved solids and organic substances and work very efficiently at lower pressures.FILMTEC reverse osmosis membranes are also characterized by excellent structural stability and are more efficient than other reverse osmosis membranes. These membranes are used to demineralize brackish water or seawater desalination for a variety of industries and applications including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at home for drinking water devices.Advantages and functions    Reduction of salinity • Removal of chemical contaminants    Recovery of ultrapure water    Pre-concentration of flows before an evaporator    Reduction in the amount of wastewater by increasing water reuse    Tap water, brackish water    2.5 ", 4", 8 " membranes    Utmost retention    Low energy consumption    Resistant to contaminationTypical applications    Reverse osmosis    Drinking water    Ultrapure water    Process water    Food and beverage industry    Chemical industry    Metal surface treatment    Electronics    Nanofiltration    Ultrafiltration    All rights reserved ® Filmtec

Features:Suitable for 200 GPD membrane (original DOW FILMTEC™).Material: Polypropylene Inlet connection: 1/8" inner thread NPTF USA Outlet connection: 2 x 1/8" inner thread NPTF USAIncludes 3 x elbow screw-in connectors - 1/4" tube external diameter to 1/8" outer thread NPTF USA

500 GPD FILMTEC™ Reverse osmosis-Membranes FILMTEC™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industrial, municipal, commercial and consumer water applications. These reverse osmosis membranes provide high retention of dissolved solids and organics and operate very efficiently at lower pressures.The 500 GPD FILMTEC™ reverse osmosis membranes also feature excellent structural strength and are more productive than other reverse osmosis membranes. These membranes are applied to demineralise brackish water or seawater desalination for various industries and applications, including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at-home drinking water devices.Features and functions:Material: TFC (DOW™ FILMTEC™)Input water temperature: max. 45 °COperating pressure: 5 - 6 barPermeate production: max. 78 l/hpH-range: 2 - 11Chlorine tolerance: < 0,1 ppmSeparation rate: 98%Filters up to approx. 1900 liters per day (500 gallons per day) Reduction of salinityRemoval of chemical impuritiesRecovery of ultra-pure waterPre-concentration of water streams upstream of evaporatorsReduction of wastewater volume by increasing water reuseTap water, brackish water2,5", 4", 8" membranesHighest retentionLow energy consumptionResistant to impuritiesTypical applications:Reverse osmosisDrinking waterUltra-pure waterProcess waterFood and beverage industryChemical processingMetal surface treatmentElectronicsNanofiltrationUltrafiltrationAll rights reserved by FILMTEC™VA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.

FILMTEC™ reverse osmosis (RO) and nanofiltration (NF) elements are solutions for industrial, municipal, commercial and consumer water applications. These reverse osmosis membranes provide high retention of dissolved solids and organics and operate very efficiently at lower pressures.The 100 GPD FILMTEC™ reverse osmosis membranes also feature excellent structural strength and are more productive than other reverse osmosis membranes. These membranes are applied to demineralise brackish water or seawater desalination for various industries and applications, including industrial water treatment, power generation, food & beverage processing, municipal desalination and water reuse, and at-home drinking water devices.Features:Material: TFC (DOW™ FILMTEC™)Input water temperature: max. 45 °COperating pressure: 5 - 6 barPermeate production: max. 15 l/hpH-range: 2 - 11Chlorine tolerance: < 0,1 ppmSeparation rate: 98%Filters up to approx. 380 liters per day (100 gallons per day) Reduction of salinityRemoval of chemical impuritiesRecovery of ultra-pure waterPre-concentration of water streams upstream of evaporatorsReduction of wastewater volume by increasing water reuseTap water, brackish water2,5", 4", 8" membranesHighest retentionLow energy consumptionResistant to impuritiesTypical applications:Reverse osmosisDrinking waterUltra-pure waterProcess waterFood and beverage industryChemical processingMetal surface treatmentElectronicsNanofiltrationUltrafiltrationAll rights reserved by FILMTEC™VA-Standard-Cartridge-SystemUsing a reliable and robust water filter cartridge system in water filters is essential. Often the pre-filters and post-filters in a water treatment system are the Achilles' heel, the so-called weak point, of the water filter. The filter cartridges must withstand pressure peaks of up to 50 bar, which can occur in the water pipes. At the same time, the cartridge must not burst or even pop out of the cartridge head. In addition, the filter cartridge must ensure a high flow rate in connection with the filter medium used.The VA-Standard-Membrane-Cartridges are sealed using the rotation welding process, which achieves maximum strength.In addition, the membrane cartridge has seals, which do not need to be cleaned, checked or replaced when changing the filter. With every new membrane cartridge, you also receive new seals.The connection between the VA-Standard-Membrane-Head and the VA-Standard-Membran-Cartridge is established using a bayonet lock. If the cartridge is under pressure, the connection of the bayonet lock engages more firmly. This makes it almost impossible to loosen or open the connection under pressure. Another feature is the mechanical lock of the water supply in the VA-Standard-Membrane-Head. Two mechanical valves lock the water inlet and outlet in the VA-Standard-Membrane-Head if the VA-Standard-Membrane-Cartridge is removed. This prevents water from running out of the VA-Standard-Membrane-Head in an uncontrolled manner and causing damage to the water treatment system or the environment.The VA-Standard-Cartridge-System is modern, robust and safe. It is also perfect as an assembly kit to realise your water filter variations.
