Hydro-Stopper, water leak detector, water stopper with two sensors

Hydro-Stopper für die VISION AQUA Wasserfilter komplett

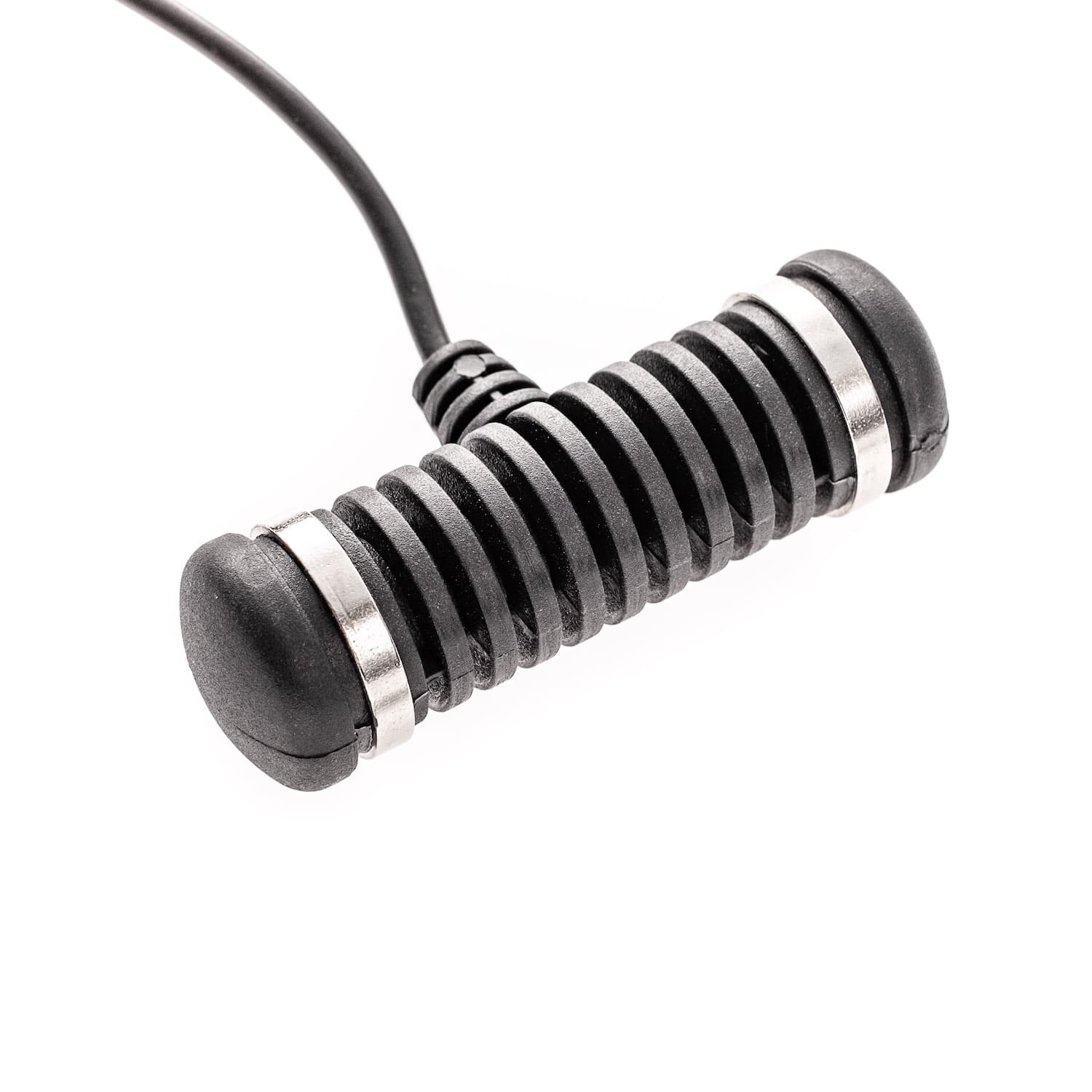

Großaufnahme des Sensors vom Hydro-Stopper für die VISION AQUA Wasserfilter

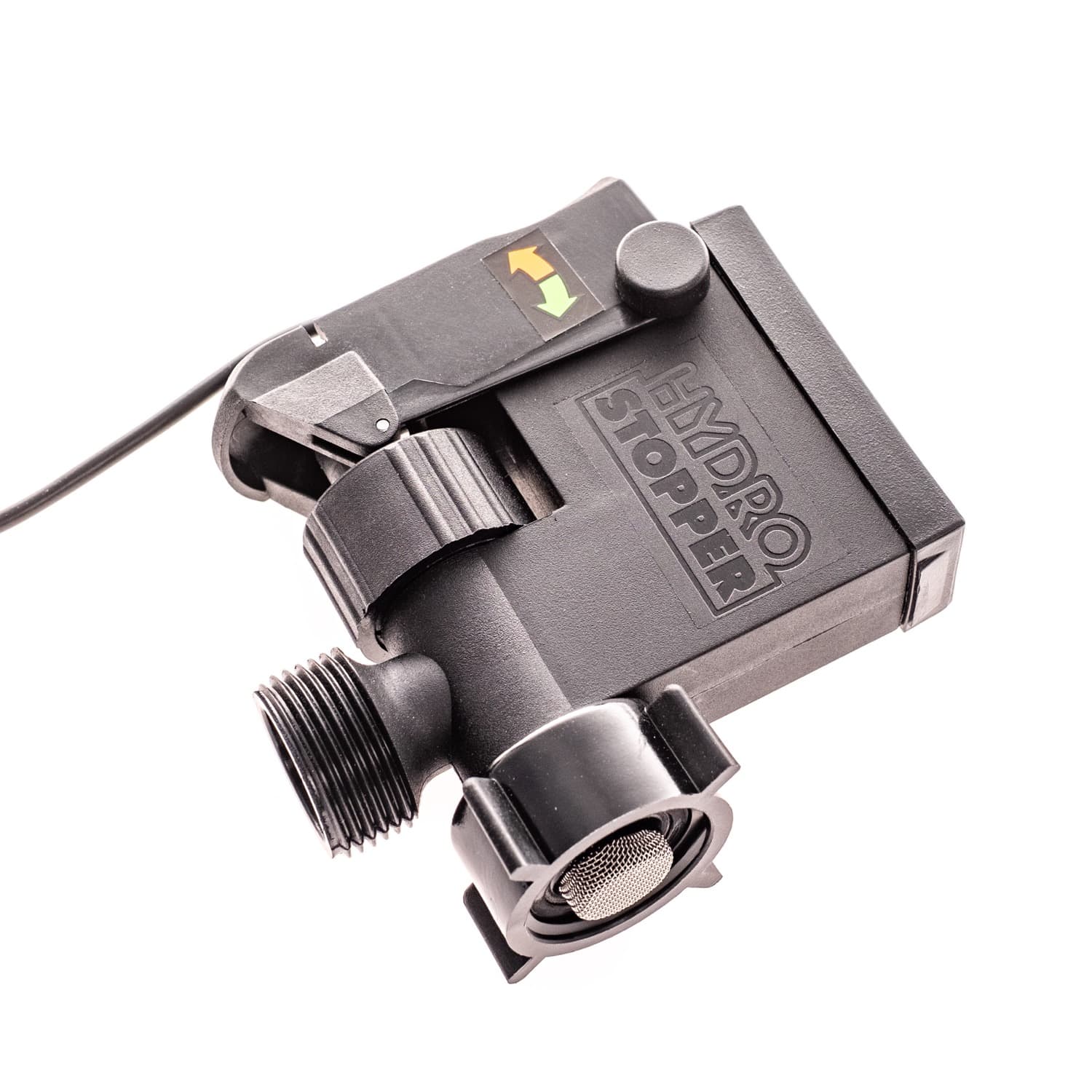

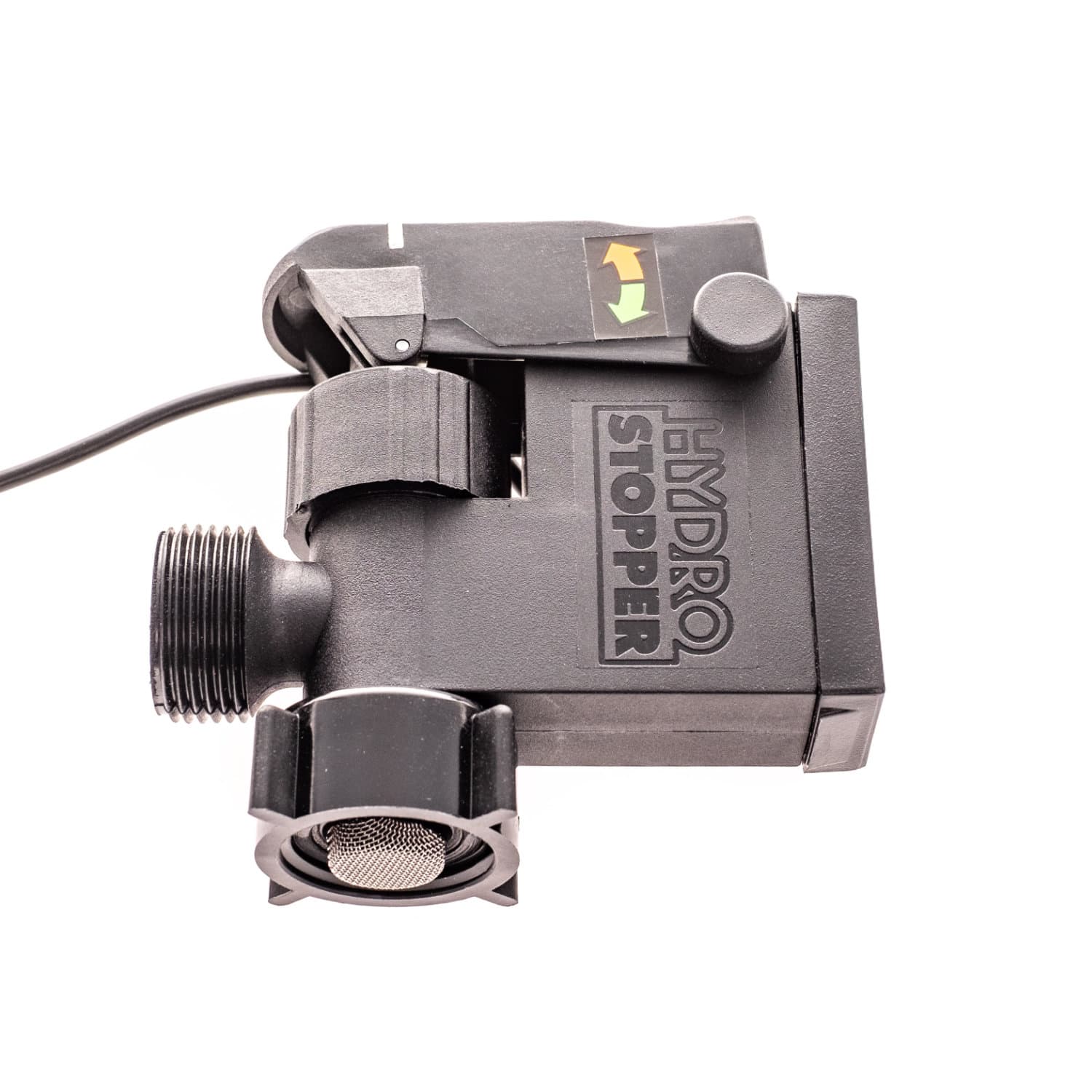

VISION AQUA Wasserfilter Hydro-Stopper Körper draufsicht

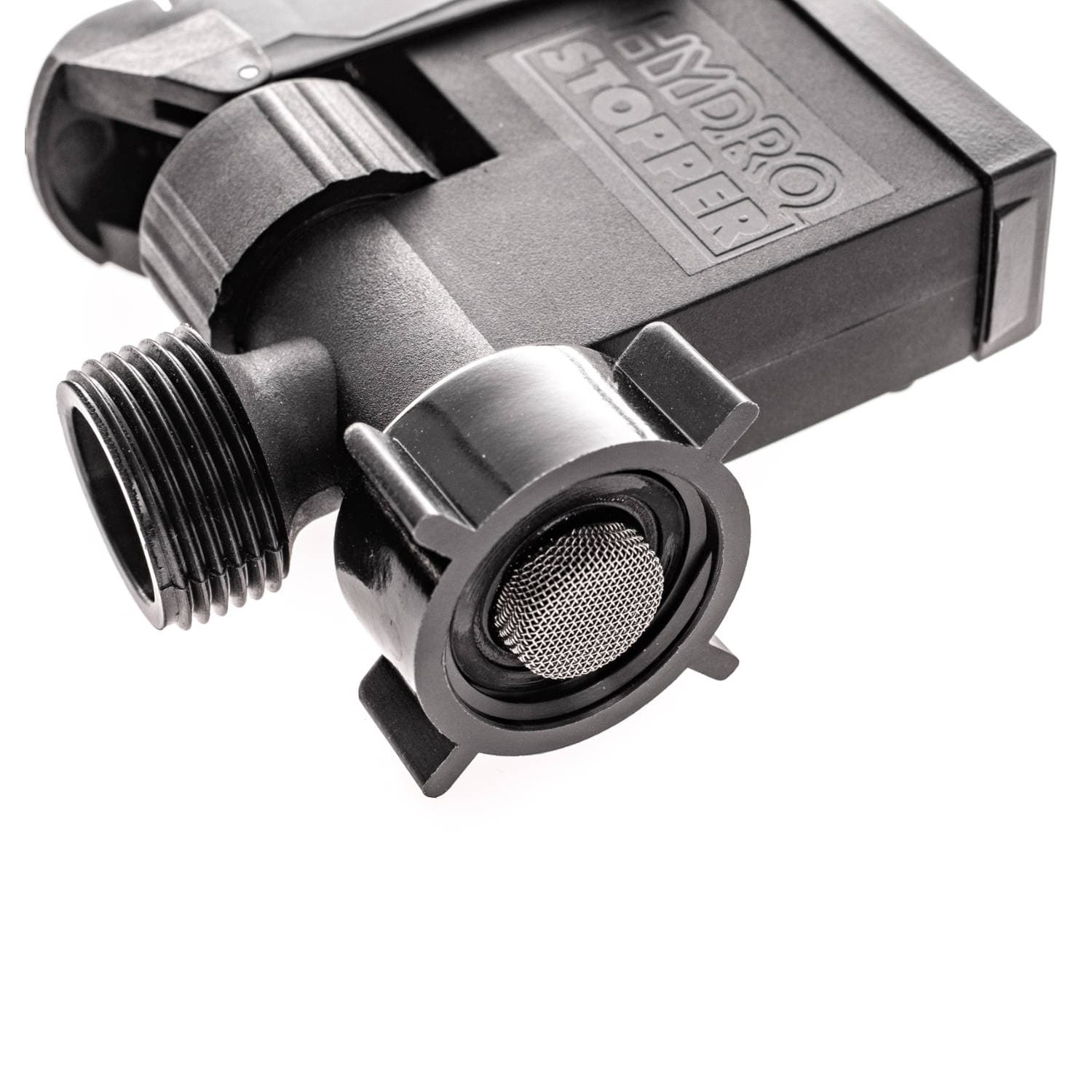

Hydro-Stopper mit der Detailansicht vom Schmutzsieb

€91.99*

Content: 1 Stück

Prices incl. VAT plus shipping costs

Available, delivery time: 3 - 5 Werktage

Stück

Product number: 1000016

EAN: 4260645520868

Manufacturer no.: H001ds

Weight: 0.3 kg

Length: 90 mm

Height: 32 mm

Width: 95 mm

Downloads

Hydro-Stopper

Instruction manual

Product information "Hydro-Stopper, water leak detector, water stopper with two sensors"

The HYDRO-STOPPER is a reliable and electronically controlled shut-off valve, which is small and easy to install by any user. Thanks to a unique technical solution for detecting a water leak and the shutoff system, the valve can be operated with a single 1.5 V alkaline battery AA LR6 or a lithium battery L91 AA. The system consumes power (0.45 A) only during activation (0.01 s) of the water shut-off mechanism. In stand-by mode, the electronic valve control is supplied with a practically non-measurable current of less than 1 nA. Consequently, it can be assumed that there is no current consumption in stand-by mode. With an L91 AA lithium battery, the standby time can exceed 10 years.

Features:

Water pressure (maximum) 1.0 MPa = 10 bar (tested up to 15 bar).
Valve inlet 3/4" inner thread
Valve outlet 3/4" male thread
Flow rate: 25 l/min at 4 bar
Material: Polyamide 6.6, 30 % glass fibre reinforced
Power supply: one alkaline battery LR6 1.5V (AA) or lithium battery L91 1.5V (AA)
Power consumption: stand-by mode: no consumption (<1nA) Power off: 400mA in 0.01s Battery should be changed before its expiry date
Cable length: 2 x 2.0 m

Applications:

Washing machines
Dishwashers
Reverse osmosis filter systems
Water dispensers
Coffee machines
Machines that automatically draw water from the water supply system

Input connection:	3/4" inner thread
Output connection:	3/4" external thread
