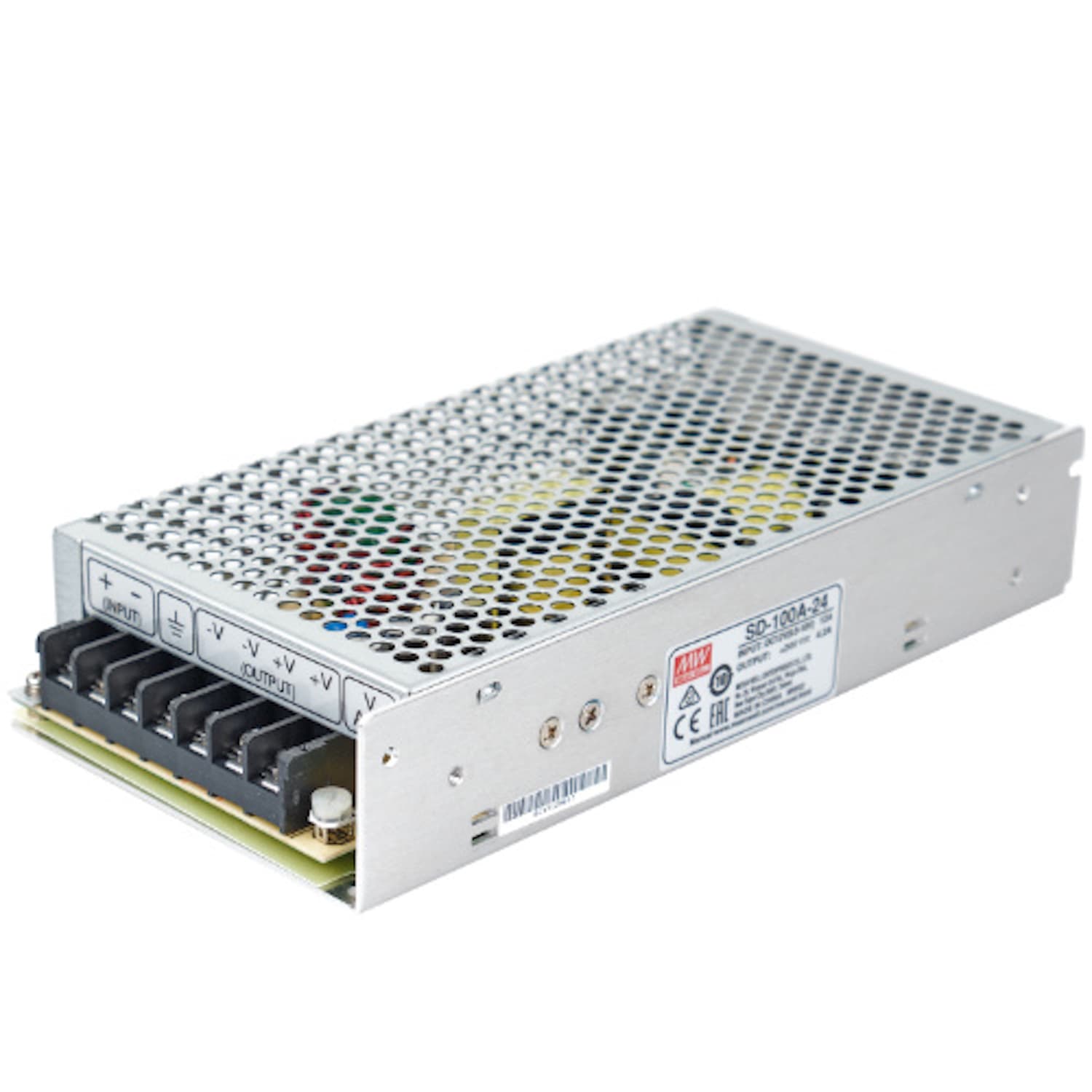

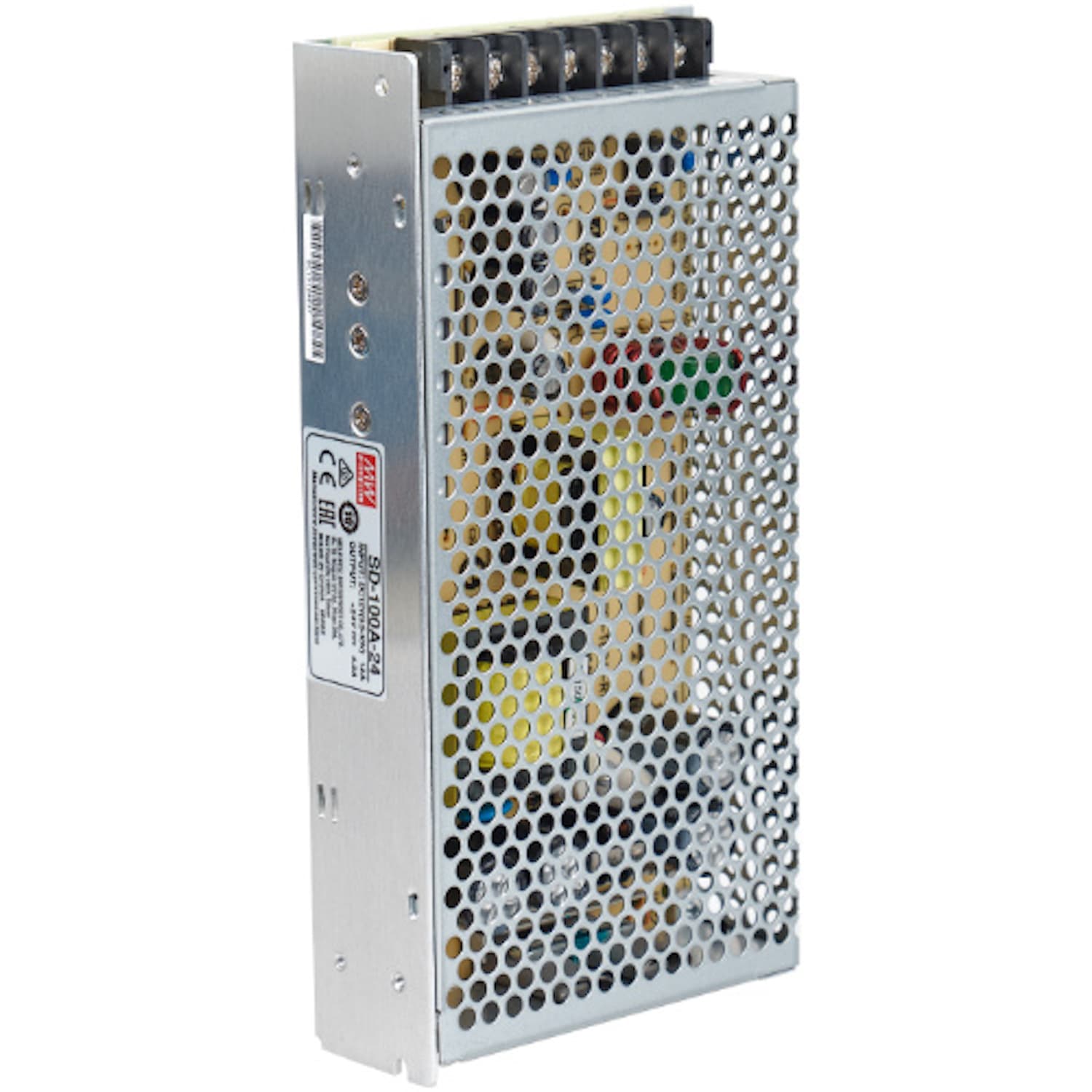

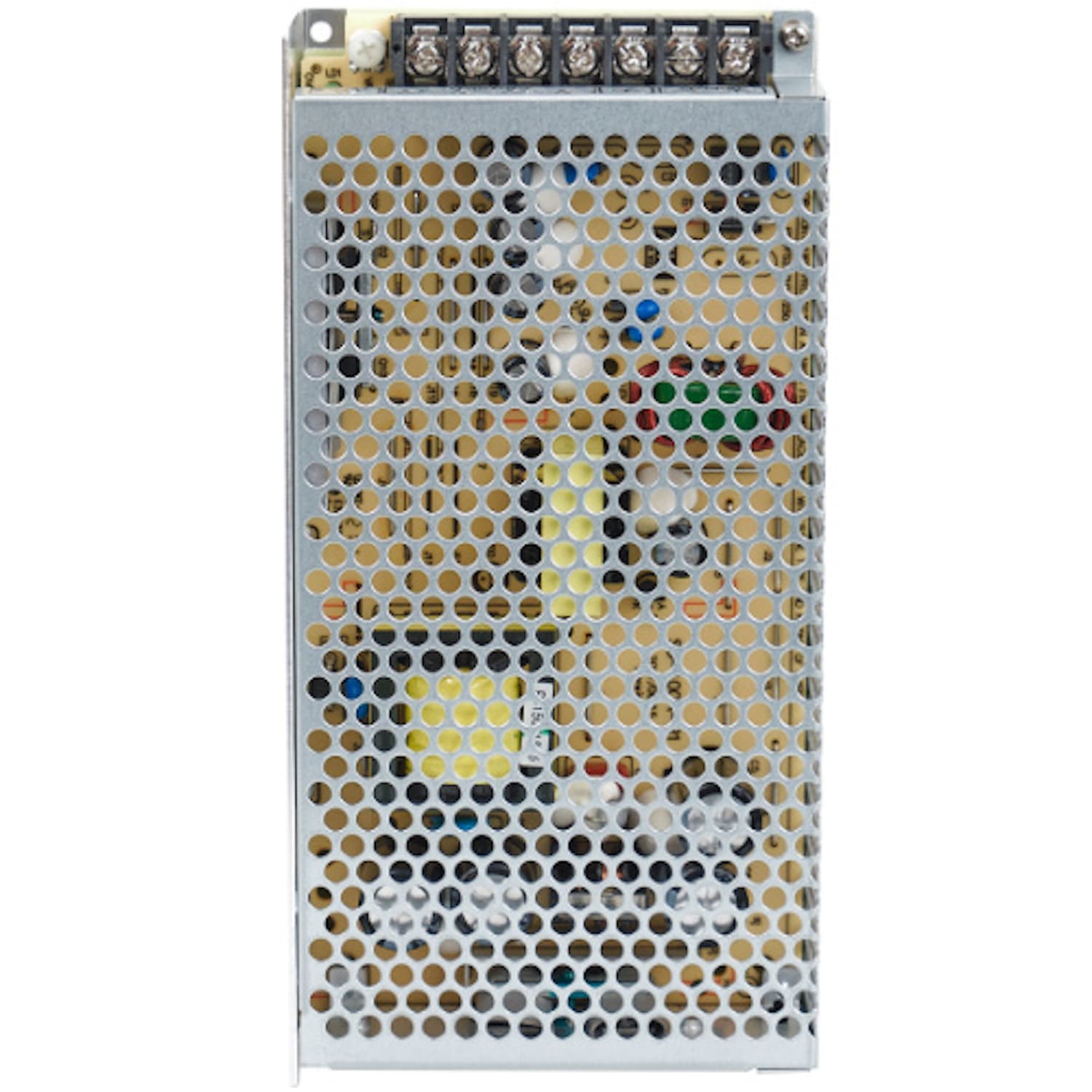

DC converter SD-100A-24 - 24V, 4.2A - Mean Well
€59.00*
Content:
1 Stück
Available, delivery time: 3 - 5 Werktage
Product number:
1000227
EAN:
4021087041737
Manufacturer no.:
SD-100A-24
Weight:
0.55 kg
Length:
199 mm
Height:
38 mm
Width:
99 mm
Product information "DC converter SD-100A-24 - 24V, 4.2A - Mean Well"
Properties:
Technical data:
- Complies with railroad standards EN50155, EN45545-2 and IEC60571
- Galvanic isolation of input and output
- Suitable for harsh and very dusty environments with high vibration and extreme temperatures
- Protection against short circuit, overload, overvoltage and overtemperature
Technical data:
- Output voltage: 24 V DC
- Output current: 4.2 A
- Power: 100 W
- Ripple: 150 mVp-p
- Input voltage: 9.5 - 18VDC
- Efficiency: 84%
- Operating temperature: -15 °C to +60 °C
